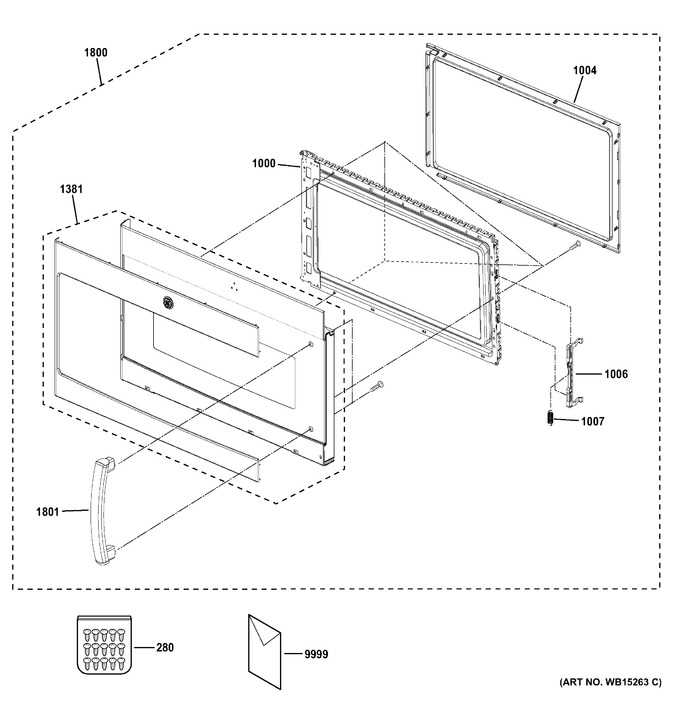

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 280 | WB01X10305 | Otr Hardware Asm Bag |
|
- | |||||
| 1000 | WB56X21097 | Door Frame Asm |
|
- | |||||
| 1004 | WB55X10790 | Choke Cover |
|
- | |||||
| 1006 | WB10X21098 | Door Latch |
|
- | |||||
| 1007 | WB10X21107 | Spring, Latch Door |
|
- | |||||
| 1381 | WB56X25680 | Door Panel Asm |
|
- | |||||
| 1800 | WB56X25679 | Door Asm |
|
- | |||||
| 1801 | WB15X21101 | Handle Door, Ss |
|
- | |||||
| 9999 | WG01F04931 | Charcoal Filter Kit (Replaces: WB02X10943) |
|
$ 67.41 | |||||
| 9999 | 49-40177 | Pm Template |
|
- | |||||
| 9999 | 49-40464 | Template Top |
|
- | |||||
| 9999 | 49-40679 | Pm Install Instructions |
|
- | |||||
| 9999 | 49-40729 | Pm Quick Ref Otr Conv |
|
- | |||||
| 9999 | 31-30658 | Pm Mini Manual |
|
- |
