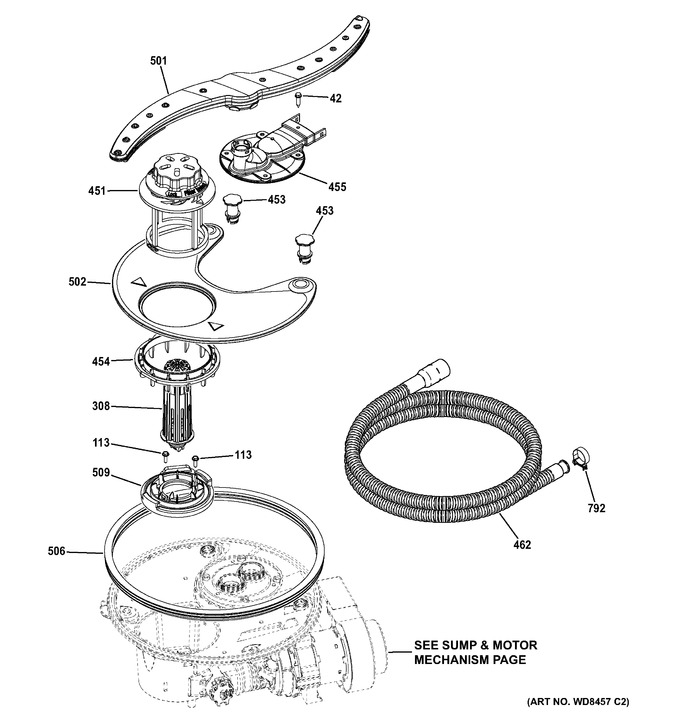

5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.97 | |||||
| 308 | WG04F04857 | Switch Flood Asm (Replaces: WD21X10519) |
|
Immediately | $ 100.20 | ||||
| 451 | WD12X20107 | Filter Manual Asm |
|
- | |||||
| 453 | WD24X10057 | Vent Filter |
|
- | |||||
| 454 | WD12X10419 | Adaptor Filter |
|
- | |||||
| 455 | WG04F04480 | Adapter Conduit Asm (Replaces: WD18X10051) |
|
$ 68.68 | |||||
| 462 | WG04F04609 | Drain Tube Asm (Replaces: WD24X10062) |
|
Immediately | $ 42.93 | ||||
| 501 | WD22X10091 | Arm Spray Lower Asm |
|
- | |||||
| 502 | WD22X10093 | Filter Coarse Ss |
|
- | |||||
| 506 | WG04L05874 | Gasket Sump Manifold (Replaces: WD08X10089) |
|
$ 66.14 | |||||
| 509 | WD12X10421 | Plate Floor Manual |
|
- | |||||
| 792 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 12.71 | ||||
| WG04A01134 | Kit - Piranha Clamps Ps |
|
Immediately | $ 21.85 | |||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 | ||||||
| WG04F12108 | Ens. Pompe De Vidange (Replaces: WG04A02642) |
|
Immediately | $ 208.41 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F09310) |
|
Immediately | $ 76.30 | |||||
| WG04L01578 | Cover Junction Box |
|
Immediately | $ 44.46 | |||||
| WG04L06024 | Gasket Tub Plastic (Replaces: WG04L05410) |
|
Immediately | $ 92.18 |
