View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door
5 - Convection Fan
SELECT A DIAGRAM
New Model Search:

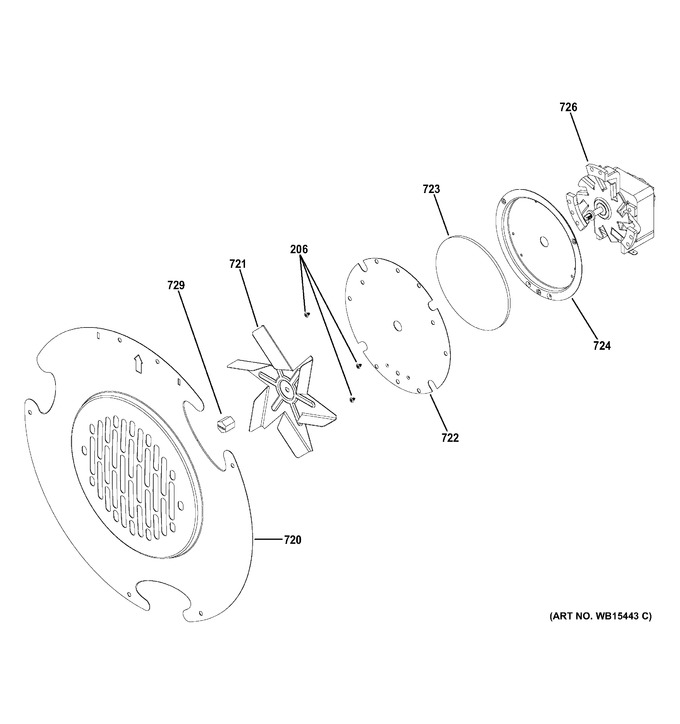

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 12.71 | ||||
| 720 | WS01L01488 | Fan Cover Front (Replaces: WB34K10037) |
|
$ 50.22 | |||||
| 721 | WB2X8351 | Fan Blade |
|
- | |||||
| 722 | WS01L00577 | Fan Cover Back (Replaces: WB34K10038) |
|
$ 34.94 | |||||
| 723 | WB35K10038 | Fan Insulator |
|
- | |||||
| 724 | WB02K10034 | Fan Support |
|
- | |||||
| 726 | WS01F02058 | Fan Motor Convect-2speed (Replaces: WB26K10003) |
|
Immediately | $ 112.89 | ||||
| 729 | WB01K10022 | Nut Wb02t10017 |
|
- |
