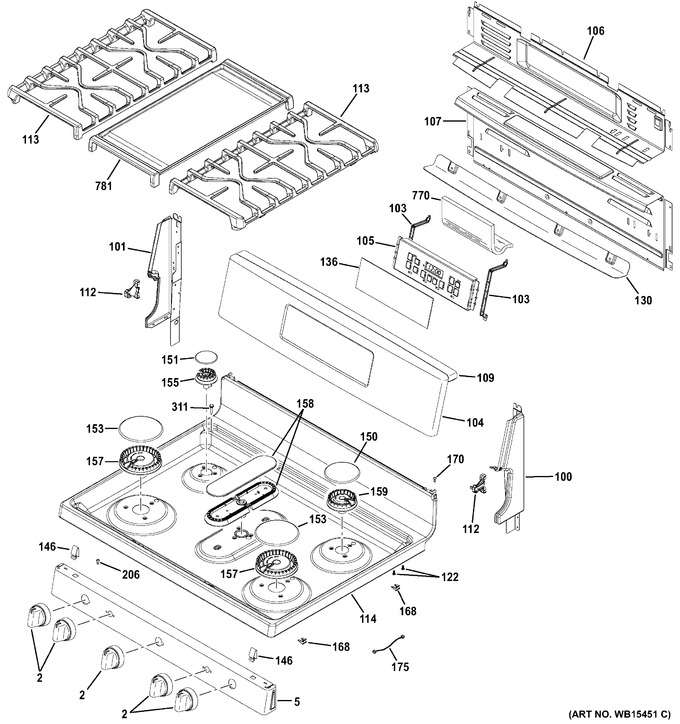

1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts


4 - Door


5 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WS01L13900		Knob Asm   (Replaces: WB03X24818)			Immediately	$ 23.53
5	WB36X24993		Manifold Panel		Appelez-nous	-
100	WB07X24815		End Support Rh		Appelez-nous	-
101	WB07X24816		End Support Lh		Appelez-nous	-
103	WB02X24845		Bracket Control		Appelez-nous	-
104	WB36X24891		Backguard Range		Appelez-nous	-
105	WB27X24685		Control Oven To9		Appelez-nous	-
106	WB34X24851		Cover Back Upper		Appelez-nous	-
107	WB34X24746		Cover Back Lower		Appelez-nous	-
109	WB34X24960		Top Complement Backguard		Appelez-nous	-
112	WB14K10003		Hinge Range Top		Appelez-nous	-
113	WB31X24736		Grate Asm		Appelez-nous	-
114	WB62X24887		Rangetop & Brkt Asm		Appelez-nous	-
122	WB01X24735		Ckt Screw		Appelez-nous	-
130	WB34X25717		Backguard Eyebrow		Appelez-nous	-
136	WB07X24886		Overlay T09 Large		Appelez-nous	-
146	WB2K52		Clip Rangetop		Appelez-nous	-
150	WS01F02536		Asm Burner Cap (9500)   (Replaces: WB29K10023)			Immediately	$ 17.47
151	WB29X24720		Asm. Cap, Burner Small V		Appelez-nous	-
153	WS01F02544		Cap Burner Asm (15k)   (Replaces: WB28K10222)			Immediately	$ 18.43
155	WB16X24721		Burner, Small V2		Appelez-nous	-
157	WB16X24722		Burner, Xl V2		Appelez-nous	-
158	WS01F02148		Oval Burner Asm   (Replaces: WB16K10076)			Immediately	$ 75.70
159	WB16X24724		Burner, Medium V2		Appelez-nous	-
168	WB02X24976		Clip, Igniter V2		Appelez-nous	-
170	WB1X5754		Screw 8-18 Abt 1/2 S		Appelez-nous	-
175	WB18X24748		Harness Ground		Appelez-nous	-
206	WS01A01151		Screw   (Replaces: WB01K10091)			Immediately	$ 12.71
311	WB02X24790		Bumper		Appelez-nous	-
770	WB35X25588		Insulation Control		Appelez-nous	-
781	WS01F11669		Griddle Aluminum   (Replaces: WB31X24738)			Immediately	$ 112.81

    View Diagram in Separate Window       Print Part List
