View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Door Parts
2 - Control Parts
3 - Oven Cavity Parts
4 - Latch Board Parts
5 - Interior Parts

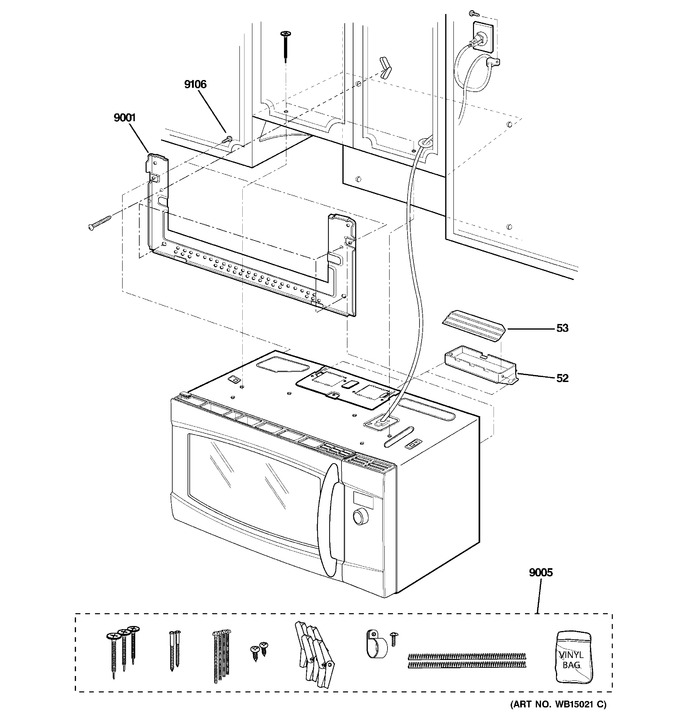

6 - Insatallation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 52 | WG02A00694 | Exhaust Adapter (Replaces: WB06X10371) |
|
$ 19.06 | |||||
| 53 | WB06X10565 | Damper |
|
- | |||||
| 9001 | WB56X10204 | Mounting Plate Assy |
|
- | |||||
| 9005 | WB01X21135 | Installation Hardware |
|
- | |||||
| 9106 | WB1X1515 | Screw Tapping |
|
- |
