SELECT A DIAGRAM

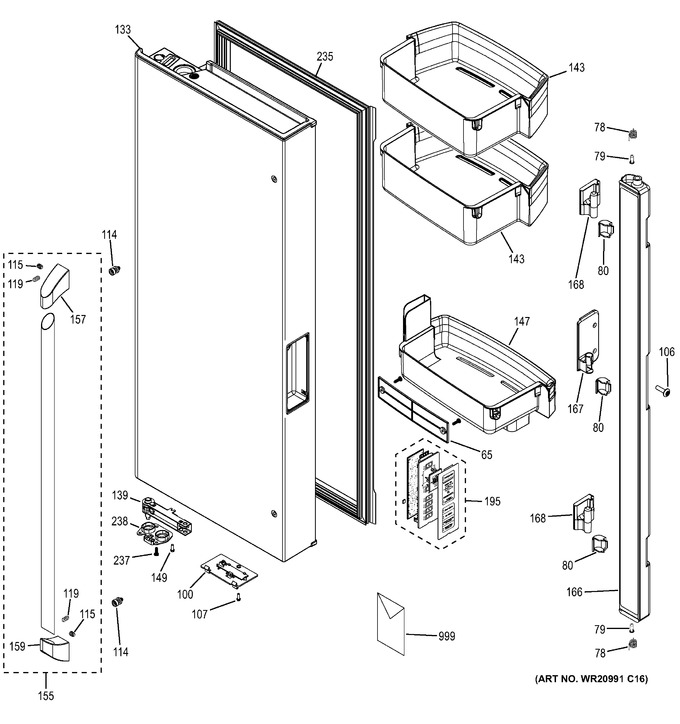

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
65	WR02X13730		Cover Harness		Appelez-nous	-
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
100	WR55X23636		Cover Led Fz Asm		Appelez-nous	-
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
107	WR01X11029		Scr 8-18 Flp 1/2 S		Appelez-nous	-
114	WR01A00255		Fastener Handle Ss   (Replaces: WR02X12028)			Immediately	$ 15.88
115	WR01X11057		Set Screw .250 Dia.		Appelez-nous	-
119	WR02X11850		Set Screw		Appelez-nous	-
133	WR78X23368		Door Foam Asm Ff Lh Nd		Appelez-nous	-
139	WR11X23324		Closure Door Asm Lh Nd		Appelez-nous	-
143	WR71X11067		Bin Gal Lh Ff Asm		Appelez-nous	-
147	WR71X11068		Bin Cond Lh Ff Asm		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
155	WG03L05277		Handle Asm Ff   (Replaces: WR12X11047)				$ 136.22
157	WR12X11050		Handle Cap End		Appelez-nous	-
159	WR12X11051		Handle Cap End		Appelez-nous	-
166	WR17X13240		Mullion Articulating Asm		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
195	WR55X22124		Control Lh Door Side Asm		Appelez-nous	-
235	WG03L09792		Gasket Ff Dgy   (Replaces: WR14X10377)				$ 145.45
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
238	WR02X13634		Stop Door Rh/lh Asm		Appelez-nous	-
999	31-49043		Pm Quick Install Guide		Appelez-nous	-
999	31-51901		Pm Mini Manual Service		Appelez-nous	-
999	49-60711		Pm Quick Use & Care Cafe		Appelez-nous	-
999	49-60678		Pm Owners Guide Web En		Appelez-nous	-
999	31-45498		Pm Instruction Sheet		Appelez-nous	-
