1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly

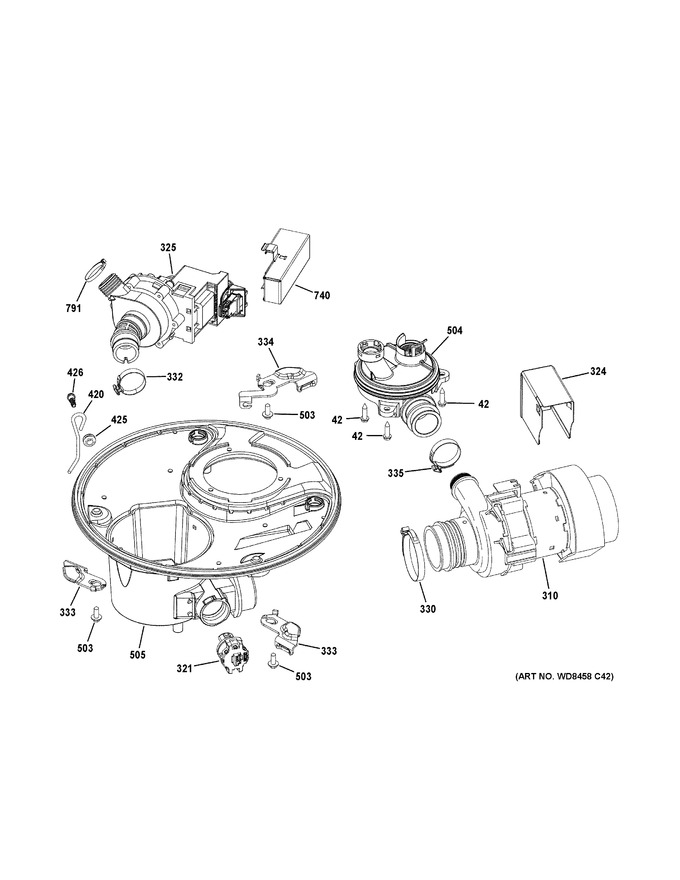

6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X22736 | Scr10 - 16 Ab Hxw 3/4 Ss |
|
- | |||||
| 310 | WD26X20551 | Pump Wash Main Asm |
|
- | |||||
| 321 | WD21X22598 | Sensor Turbidity Asm |
|
- | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WD26X21697 | Pump Drain Asm |
|
- | |||||
| 330 | WD01X20302 | Clamp |
|
- | |||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X22781 | Scr 10-18 X 5/8 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X21754 | Diverter Passive Asm |
|
- | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F06992 | Transition Piece Asm |
|
$ 33.35 | ||||||
| WG04F06991 | Vent Conduit Asm |
|
$ 66.80 | ||||||
| WG04F06989 | Conduit Mid Tiered Asm |
|
$ 54.09 | ||||||
| WG04F06984 | Vent - Dark Grey |
|
Immediately | $ 19.06 | |||||
| WG04F06733 | Striker Adapter |
|
$ 10.32 | ||||||
| WG04F06693 | Striker Latch |
|
Immediately | $ 9.53 | |||||
| WG04F05895 | Vent Fan Asm |
|
$ 74.17 | ||||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F05889) |
|
Immediately | $ 76.30 | |||||
| WG04A03669 | P2a Drain Pump Kit (Replaces: WG04F05383) |
|
Immediately | $ 305.97 | |||||
| WG04F05272 | Couvercle, Console |
|
$ 252.47 | ||||||
| WG04A03393 | Control Board Main Good (Replaces: WG04F05129) |
|
$ 222.56 | ||||||
| WG04F05110 | Console Top Control |
|
$ 27.00 | ||||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04609 | Drain Tube Asm |
|
Immediately | $ 42.93 | |||||
| WG04F04517 | Cable Asm Pulley |
|
Immediately | $ 19.06 | |||||
| WG04F00462 | Funnel & Gasket Assy |
|
$ 15.72 | ||||||
| WG04A03393 | Ens Tableau |
|
$ 222.56 | ||||||
| WG04A03389 | Svr- Door Closing Kit |
|
$ 174.51 | ||||||
| WG04A03030 | Tc Inner Door Leak Kit |
|
$ 236.72 | ||||||
| WG04A01461 | Ens. Contre Porte Asm. (Replaces: WG04A02903) |
|
Immediately | $ 185.86 | |||||
| WG04F10218 | Kit Svc Ui Top Logic (Replaces: WG04A02632) |
|
$ 199.24 | ||||||
| WG04A02197 | Spring Door |
|
Immediately | $ 23.53 | |||||
| WW01A00722 | Worm Gear Clamp (Replaces: WG04A02196) |
|
$ 12.71 | ||||||
| WG04A02147 | Scr 10-32 Gx Hxw 3/8 |
|
$ 3.97 | ||||||
| WG04A01462 | Kit Door Inner Asm |
|
$ 248.41 | ||||||
| WG04F12108 | Pump Drain Asm (Replaces: WG04L04531) |
|
Immediately | $ 208.41 | |||||
| WG04A01338 | Pompe |
|
$ 200.56 | ||||||
| WG01A01600 | Screw Leveling (Replaces: WG04A01265) |
|
Immediately | $ 9.53 | |||||
| WG04A01160 | Kit-spray Arm Service |
|
$ 83.84 | ||||||
| WG04A01079 | Ct Screw Asm |
|
Immediately | $ 33.35 | |||||
| WG04A01013 | Badge Ge Asm |
|
$ 23.82 | ||||||
| WG04A00073 | Clamp |
|
Immediately | $ 12.71 | |||||
| WG03F05892 | Bezel & Cvr Console Asm |
|
$ 242.90 | ||||||
| WG04A03389 | Ens. Service Porte Fermeture (Replaces: WG03A02201) |
|
$ 174.51 | ||||||
| WG04A01452 | Kit Door Asm Outer |
|
Immediately | $ 198.38 | |||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04A04003 | Gasket Tub Ss (Replaces: WG04L04119) |
|
Immediately | $ 192.73 | |||||
| WG04L03829 | Inner Rail Upr Rack Asm |
|
Immediately | $ 88.15 | |||||
| WG04F09635 | Insulation Toe Kick (Replaces: WG04L03238) |
|
$ 10.81 | ||||||
| WG04A05136 | Trim Tub Bk/ss (Replaces: WG04L02739) |
|
Immediately | $ 64.87 | |||||
| WG04L02133 | Poignee Asm. |
|
$ 134.66 | ||||||
| WG04A03459 | Brkt Support Hinge Asm (Replaces: WG04L02005) |
|
$ 14.29 | ||||||
| WG04A03460 | Brkt Support Hinge Asm (Replaces: WG04L02004) |
|
$ 14.29 | ||||||
| WG04L01959 | Arm Hinge Asm |
|
$ 61.06 | ||||||
| WG04L01958 | Arm Hinge Asm (right Side) |
|
$ 61.06 | ||||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG03A02167 | Arm Spray Upper Asm (Replaces: WG04L01519) |
|
Immediately | $ 98.12 | |||||
| WG04F04857 | Switch Flood Asm (Replaces: WG04F09570) |
|
Immediately | $ 100.20 | |||||
| WG04A04003 | Gasket Tub Ss (Replaces: WG04F09561) |
|
Immediately | $ 192.73 | |||||
| WG04F11770 | Valve Eau Asm (Replaces: WG04F09310) |
|
Immediately | $ 76.30 | |||||
| WG04F11614 | Machine Control Good (Replaces: WG04F09307) |
|
$ 217.65 | ||||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 108.73 |
