SELECT A DIAGRAM
1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly

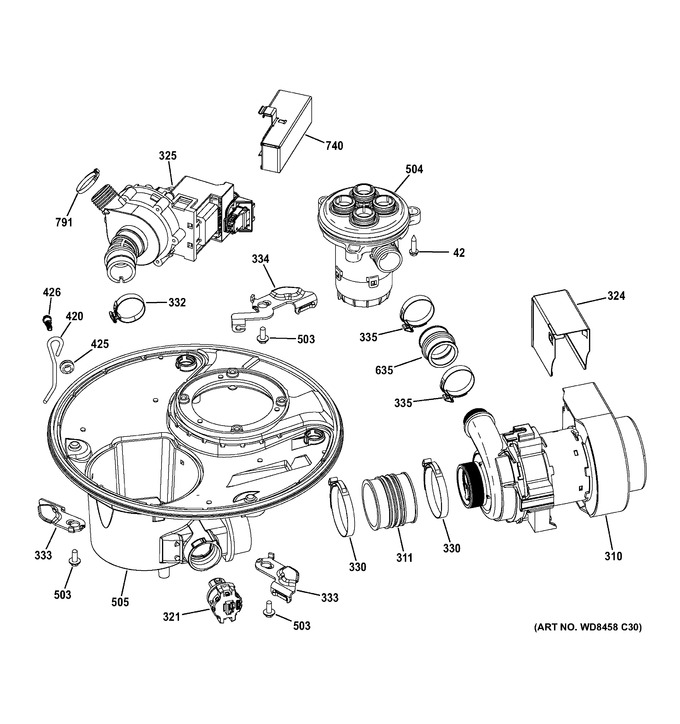

5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD26X20551 | Pump Wash Main Asm |
|
- | |||||
| 311 | WD24X10059 | Hose Wash Pump Inlet |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X20212 | Shield Pump Main |
|
- | |||||
| 325 | WD35X20878 | Pump Drain Kit |
|
- | |||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WG04A02646 | Active Diverter Asm Kit (Replaces: WD35X20598) |
|
$ 152.60 | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 635 | WD24X10058 | Hose Wash Pump Outlet |
|
- | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04609 | Drain Tube Asm |
|
Immediately | $ 42.93 | |||||
| WW01F03176 | Detergent Module Kit (Replaces: WG04A03376) |
|
Immediately | $ 96.30 | |||||
| WG04A03030 | Tc Inner Door Leak Kit |
|
$ 236.72 | ||||||
| WG04A02646 | Active Diverter Asm Kit |
|
$ 152.60 | ||||||
| WG04A02383 | Spring Door |
|
Immediately | $ 17.47 | |||||
| WG04A02187 | Attach Strip |
|
$ 20.65 | ||||||
| WG04A02180 | Attach Strip |
|
Immediately | $ 12.71 | |||||
| WG04A01462 | Kit Door Inner Asm |
|
$ 248.41 | ||||||
| WG04A01455 | Kit Door Asm Outer |
|
$ 294.36 | ||||||
| WG04A01134 | Kit - Piranha Clamps Ps |
|
Immediately | $ 21.85 | |||||
| WG04A01085 | Diverter Asm Kit |
|
Immediately | $ 66.80 | |||||
| WG04F12155 | Hose High Drain Loop (Replaces: WG04L05591) |
|
Immediately | $ 57.27 | |||||
| WG04A01013 | Badge Ge Asm |
|
$ 23.82 | ||||||
| WG04F09808 | Valve Water Asm (Replaces: WG04L05576) |
|
Immediately | $ 79.72 | |||||
| WG04F12108 | Pump Drain Asm (Replaces: WG04L04531) |
|
Immediately | $ 208.41 | |||||
| WG04L06311 | Cover Console Asm Iml (Replaces: WG04L04121) |
|
$ 136.29 | ||||||
| WG04L03829 | Inner Rail Upr Rack Asm |
|
Immediately | $ 88.15 | |||||
| WG04F09824 | Arm Spray Lower Asm (Replaces: WG04L03604) |
|
$ 84.76 | ||||||
| WG04L02133 | Door Handle Asm |
|
$ 134.66 | ||||||
| WG04F06984 | Vent - Dark Grey (Replaces: WG04L02102) |
|
Immediately | $ 19.06 | |||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG04F09703 | Machine Control Good |
|
$ 174.70 | ||||||
| WG04F09348 | Adapter Conduit Asm |
|
$ 77.58 | ||||||
| WG04F08200 | Cable Asm |
|
$ 30.18 | ||||||
| WG04F07129 | Pump Wash Main Asm |
|
$ 174.87 | ||||||
| WG04F06984 | Vent - Dark Grey |
|
Immediately | $ 19.06 | |||||
| WG04F12155 | Boyau (Replaces: WG04F06708) |
|
Immediately | $ 57.27 | |||||
| WG04F09808 | Valve Water Asm (Replaces: WG04F05891) |
|
Immediately | $ 79.72 | |||||
| WG04F05595 | Sensor Turbidity Asm |
|
$ 50.92 | ||||||
| WG04F05402 | Harness Asm Door |
|
$ 67.82 | ||||||
| WG04F05390 | Harness Asm Dc |
|
$ 85.52 | ||||||
| WG04F05114 | Console Top Control |
|
$ 61.06 |
