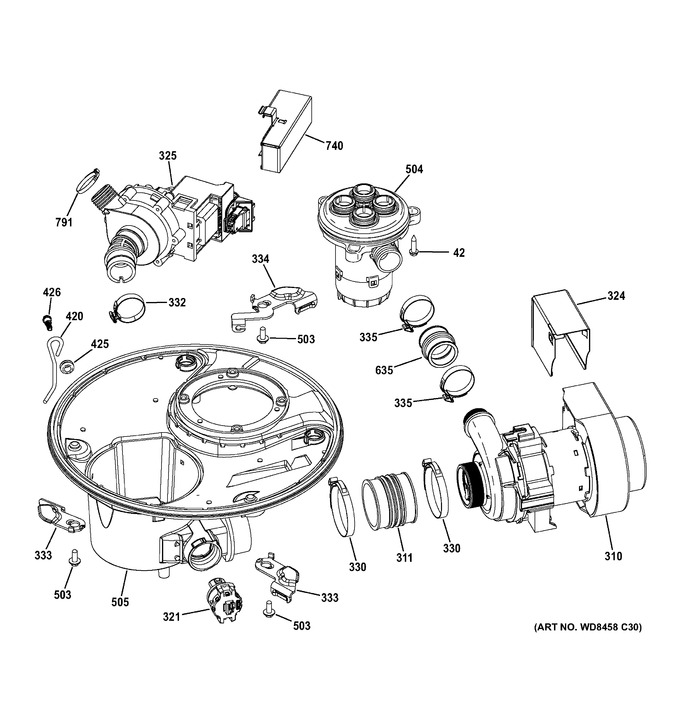

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD26X22285		Pump Wash Main Asm		Appelez-nous	-
311	WD24X10059		Hose Wash Pump Inlet		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 50.92
324	WD01X20212		Shield Pump Main		Appelez-nous	-
325	WD35X20878		Pump Drain Kit		Appelez-nous	-
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 21.85
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WG04A02646		Active Diverter Asm Kit   (Replaces: WD35X20598)				$ 152.60
505	WD18X10055		Sump Manifold		Appelez-nous	-
635	WD24X10058		Hose Wash Pump Outlet		Appelez-nous	-
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04F09808		Valve Water Asm   (Replaces: WG04L05576)			Immediately	$ 79.72
	WG04F04857		Switch Flood Asm			Immediately	$ 100.20
	WG04A03398		Spring Door			Immediately	$ 12.71
	WG01F08006		Ens. Service Interface   (Replaces: WG04A03395)				$ 235.26
	WG04A03280		Countertop Bracket			Immediately	$ 30.76
	WG04A02383		Spring Door			Immediately	$ 17.47
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 21.85
	WG04F08971		Pulley Hinge				$ 6.35
	WG04F09703		Machine Control Good				$ 174.70
	WG01F08006		Control Ui Lcd Ffstn   (Replaces: WG04F10109)				$ 235.26
	WG04F12108		Pump Drain Asm   (Replaces: WG04L04531)			Immediately	$ 208.41
	WG04F08200		Cable Asm				$ 30.18
