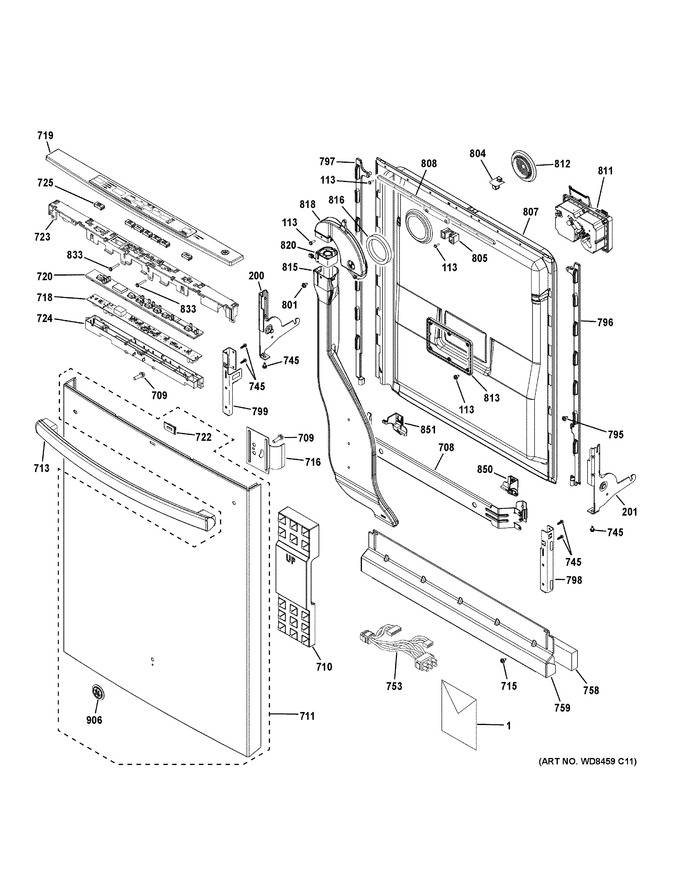

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-55089 | Pm Owners Manual |
|
- | |||||
| 1 | 31-31546 | Pm Install Instructions |
|
- | |||||
| 1 | 31-30747 | Pm Mini-manual Csm |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.97 | |||||
| 200 | WG04L01958 | Arm Hinge Asm Rh (Replaces: WD14X20128) |
|
$ 61.06 | |||||
| 201 | WG04L01959 | Arm Hinge Asm (Replaces: WD14X20129) |
|
$ 61.06 | |||||
| 708 | WD30X10045 | Brace Door Asm |
|
- | |||||
| 709 | WD01X20934 | Scr 1/4-28 Fl Ihxw 15/16 |
|
- | |||||
| 710 | WD01X10585 | Block Foam Door |
|
- | |||||
| 711 | WD34X22800 | Outer Door, Ss |
|
- | |||||
| 713 | WD09X21321 | Door Handle Asm |
|
- | |||||
| 715 | WG04A02147 | Scr 10-32 Gx Hxw 3/8 (Replaces: WD02X10220) |
|
$ 3.97 | |||||
| 716 | WD01X20135 | Bracket Handle |
|
- | |||||
| 718 | WD21X22239 | Ui Board |
|
- | |||||
| 719 | WD34X21663 | Bezel & Cvr Console Asm |
|
- | |||||
| 720 | WG04F06988 | Silicone Light Pipe (Replaces: WD12X20139) |
|
$ 54.18 | |||||
| 722 | WD09X20066 | Lens And Adhesive Asm |
|
- | |||||
| 723 | WG04F05110 | Console Top Control (Replaces: WD12X10469) |
|
$ 27.00 | |||||
| 724 | WD12X10470 | Housing Bottom |
|
- | |||||
| 725 | WD09X22799 | Button And Graphics Asm |
|
- | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 753 | WD21X21664 | Harness Asm Door |
|
- | |||||
| 758 | WD27X21334 | Insulation Toe Kick |
|
- | |||||
| 759 | WD27X10392 | Toe Kick Painted Asm |
|
- | |||||
| 795 | WD02X22628 | Screw T15 8-16 Plastite 60-1 |
|
- | |||||
| 796 | WG04A02180 | Attach Strip (Replaces: WD01X10633) |
|
Immediately | $ 12.71 | ||||
| 797 | WG04A02187 | Attach Strip (Replaces: WD01X10634) |
|
$ 20.65 | |||||
| 798 | WD01X22512 | Bracket Support Hinge |
|
- | |||||
| 799 | WD01X22513 | Bracket Support Hinge |
|
- | |||||
| 801 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 804 | WG04F06693 | Striker Latch (Replaces: WD13X10071) |
|
Immediately | $ 9.53 | ||||
| 805 | WD13X10068 | Striker Adapter |
|
- | |||||
| 807 | WD31X20237 | Door Inner Ss |
|
- | |||||
| 808 | WD01X10639 | Attachment Strip Top |
|
- | |||||
| 811 | WD12X22576 | Detergent Disp No Sensor |
|
- | |||||
| 812 | WD24X20586 | Cover Vent |
|
- | |||||
| 813 | WD12X10462 | Plate Detergent |
|
- | |||||
| 815 | WD12X20218 | Vent Conduit Asm |
|
- | |||||
| 816 | WG04L01634 | Door Vent Seal (Replaces: WD08X10092) |
|
Immediately | $ 11.12 | ||||
| 818 | WD12X21356 | Transition Piece Asm |
|
- | |||||
| 820 | WG04F05895 | Vent Fan Asm (Replaces: WD24X20256) |
|
$ 74.17 | |||||
| 833 | WD02X20140 | Scr 10-16 Pl Pnt 2.25 S |
|
- | |||||
| 850 | WD12X22540 | Trim Door Rh |
|
- | |||||
| 851 | WD12X22541 | Trim Door Lh |
|
- | |||||
| 906 | WG04A01013 | Badge Ge Asm (Replaces: WR04X10181) |
|
$ 23.82 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 108.73 | |||||
| WG04F11614 | Commande De La Machine Bon (Replaces: WG04F09307) |
|
$ 217.65 | ||||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F09310) |
|
Immediately | $ 76.30 | |||||
| WG04A04003 | Gasket Tub Ss (Replaces: WG04F09561) |
|
Immediately | $ 192.73 | |||||
| WG04F09764 | Bezel & Cvr Console Asm |
|
$ 401.34 | ||||||
| WG04L02133 | Door Handle Asm |
|
$ 134.66 | ||||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04A01134 | Kit - Piranha Clamps Ps |
|
Immediately | $ 21.85 | |||||
| WG04A01160 | Assemblage Bras Gicleur |
|
$ 83.84 | ||||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 | ||||||
| WG04A01454 | Kit Door Asm Outer |
|
$ 246.49 | ||||||
| WG04A03389 | Svr- Door Closing Kit |
|
$ 174.51 | ||||||
| WG04A03393 | Ens Tableau |
|
$ 222.56 | ||||||
| WG04A03425 | Ens Service Interface |
|
$ 186.00 | ||||||
| WG04A03618 | Assemblage Lavage (Replaces: WG04A03453) |
|
Immediately | $ 322.24 | |||||
| WG04A03534 | Ens. Service Logique Interface Sup. |
|
$ 113.76 | ||||||
| WG04F04678 | Hose Wash Pump Inlet |
|
$ 16.35 | ||||||
| WG04A03618 | Pompe Asm (Replaces: WG03L07964) |
|
Immediately | $ 322.24 | |||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04A03669 | P2a Drain Pump Kit (Replaces: WG04F05383) |
|
Immediately | $ 305.97 | |||||
| WG04F06693 | Striker Latch |
|
Immediately | $ 9.53 | |||||
| WG04F06989 | Conduit Mid Tiered Asm |
|
$ 54.09 |
