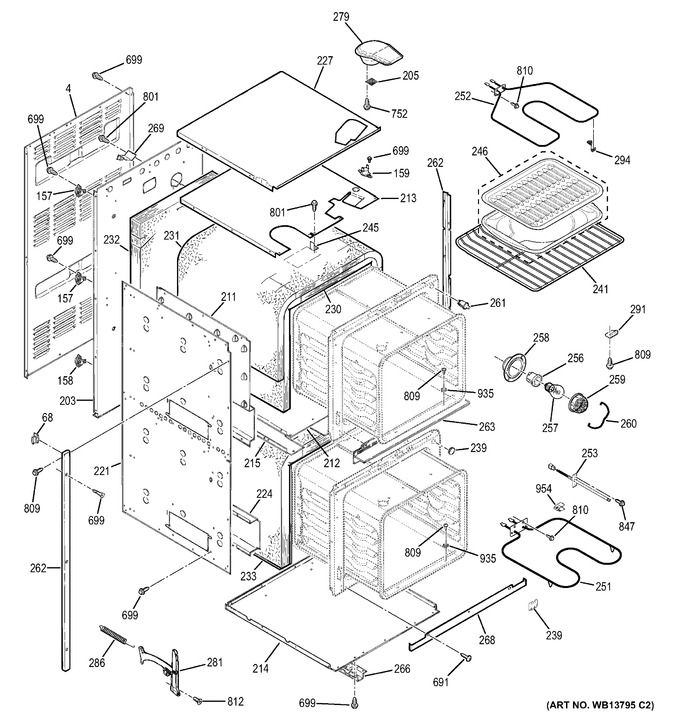

2 - Body Parts
3 - Upper Door
4 - Lower Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB37K5017 | Cabinet Back |
|
- | |||||
| 68 | WB02T10164 | Spacer Frt Trim (blk) |
|
- | |||||
| 157 | WB24K5098 | Limit Switch-body |
|
- | |||||
| 158 | WB24K5046 | Switch Limit |
|
- | |||||
| 203 | WB63K5113 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB2K5180 | Ins Ov Side Retainer |
|
- | |||||
| 212 | WB2K5171 | Ov Btm Ins Retainer-upp |
|
- | |||||
| 213 | WB2K5256 | Top Insulation Retnr-upp |
|
- | |||||
| 214 | WB63K5116 | Bottom Cab |
|
- | |||||
| 215 | WB2K5174 | Ov Top Ins Retainer-lo |
|
- | |||||
| 221 | WB63K5112 | Side Cabinet |
|
- | |||||
| 224 | WB2K5172 | Ins Dr Spring Retainer |
|
- | |||||
| 227 | WB2K5173 | Ins Cabinet Top Retainer |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrpr Otr |
|
- | |||||
| 232 | WB35K5057 | Insulation-back/btm Uppe |
|
- | |||||
| 232 | WB35K5067 | Insulation-back Btm-low |
|
- | |||||
| 233 | WB35K5041 | Insulation-inner Wrap-lo |
|
- | |||||
| 239 | WB2X9189 | Plug Button-rectangular |
|
- | |||||
| 239 | WB2X9587 | Plug Button-round |
|
- | |||||
| 241 | WB48T10094 | Rack Oven |
|
- | |||||
| 245 | WB2M30 | Scroll Bracket |
|
- | |||||
| 246 | WS01A00265 | Broiler Pan & Rack Large (Replaces: WB48X10056) |
|
$ 67.51 | |||||
| 251 | WB44X26298 | Element Bake Upper (2650 |
|
- | |||||
| 251 | WB44X26290 | Element Bake (2000w) |
|
- | |||||
| 252 | WB44T10111 | Element Broil (3400w) |
|
- | |||||
| 253 | WB21X5347 | Wb21x5301 |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 258 | WG02F04577 | Oven Light Cup (Replaces: WB02T10037) |
|
$ 28.58 | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | WG02F02821 | Switch Spdt High Amp (Replaces: WB24T10160) |
|
Immediately | $ 27.16 | ||||
| 262 | WB7K5263 | Trim Side (rt Or Lt)blk |
|
- | |||||
| 263 | WB7K5123 | Trim-i-brow Blk-center |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 268 | WB07T10415 | Trim Frt Frm Lwr |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 279 | WB38K5028 | Wb38k5051 |
|
- | |||||
| 281 | WB10T10061 | Hinge Ov Dr Lt |
|
- | |||||
| 281 | WB10T10060 | Hinge Ov Dr Rt |
|
- | |||||
| 286 | WB09T10009 | Spring Ovn Dr |
|
- | |||||
| 286 | WB09T10007 | Spring Oven Dr Upper |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 691 | WB1K5162 | Screw |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 801 | WB01M10002 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1K5191 | Screw Flat Zinc 10-32 |
|
- | |||||
| 847 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 954 | WB2K10 | Clip Capillary |
|
- |
