View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Backsplash, Cabinet & Front Panel

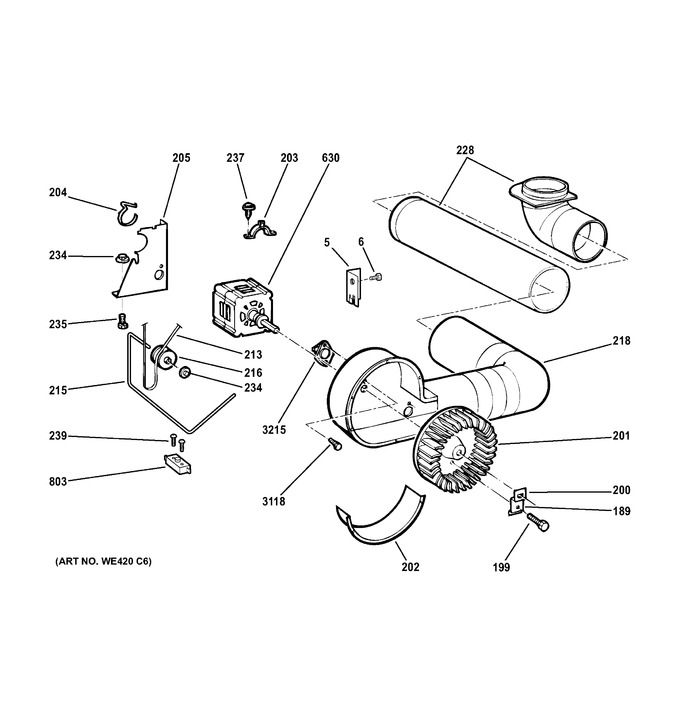

2 - Blower & Motor
3 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WE1M493 | Bracket Belt Switch |
|
- | |||||
| 6 | WE2M154 | Screw |
|
- | |||||
| 189 | WE1M984 | Clamp |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WE1M983 | Clamp |
|
- | |||||
| 201 | WW02F00183 | Wheel Blower (Replaces: WE16X16) |
|
$ 68.05 | |||||
| 202 | WE1X689 | Baffle Blower Housing |
|
- | |||||
| 202 | WE01X20516 | Baffle |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Motor Bracket |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WE12M24 | Belt Drive |
|
- | |||||
| 215 | WW02F00171 | Idler Arm (Replaces: WE3M18) |
|
$ 24.91 | |||||
| 216 | WE12X20517 | Pulley |
|
- | |||||
| 218 | WE14X23275 | Blower Hous & Elbow Asm |
|
- | |||||
| 228 | WE14M41 | Elbow |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WE00X86 | Screw |
|
- | |||||
| 237 | WE2M187 | Screw |
|
- | |||||
| 239 | WE2M167 | Screws |
|
- | |||||
| 630 | WE17X23619 | Motor And Pulley |
|
- | |||||
| 3118 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 |
