01 - Cover Sheet

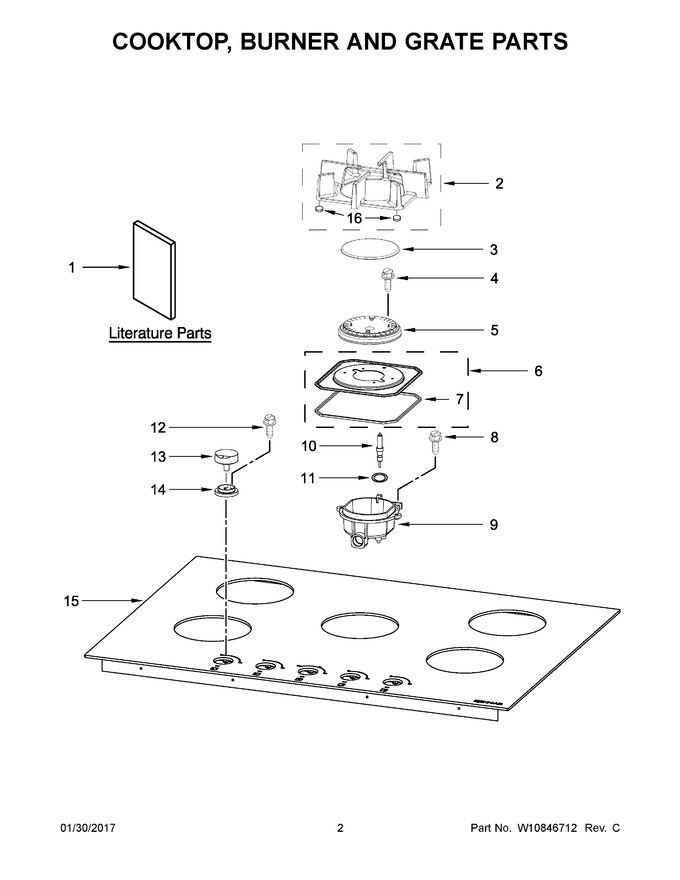

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10821219 | Instructions, Installation |
|
- | |||||
| 2 | W10845770 | Grate, Burner |
|
- | |||||
| 3 | W10691230 | Cap, Burner (black (medium) (left Front)) |
|
$ 132.33 | |||||
| 4 | W11676624 | Screw, Burner Base (large And Medium Burners) (Replaces: W10626016) |
|
Immediately | $ 16.19 | ||||
| 5 | W10691283 | Base, Burner (medium (left Front)) |
|
$ 151.60 | |||||
| 6 | W10850781 | Plate, Burner (kit Of 5) |
|
$ 440.07 | |||||
| 7 | W10845790 | Gasket, Silicone |
|
- | |||||
| 8 | W10626015 | Screw, Injector Holder |
|
$ 17.14 | |||||
| 9 | WPW10571491 | Holder Orifice (132mm) (left Front) (Replaces: W10571491) |
|
$ 75.12 | |||||
| 10 | W10617810 | Electrode (250mm) (left Front, Right Front) |
|
Immediately | $ 81.63 | ||||
| 11 | W10571930 | Clip, Electrode |
|
Immediately | $ 25.33 | ||||
| 12 | W10637348 | Screw |
|
Immediately | $ 30.69 | ||||
| 13 | WPW10620810 | Knob (stainless) (Replaces: W10620810) |
|
$ 182.49 | |||||
| 14 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 163.99 | ||||
| 15 | W10845783 | Top, Glass (includes Brackets) |
|
$ 1,468.82 | |||||
| 16 | W10850783 | Pad, Grate (kit Of 4) |
|
$ 39.55 | |||||
| 10A | W10845237 | Electrode (380mm) (center) |
|
Immediately | $ 83.46 | ||||
| 10B | W10692364 | Electrode (500mm) (left Rear, Right Rear) |
|
$ 143.30 | |||||
| 1A | W10821218 | Guide, Use And Care |
|
- | |||||
| 1B | W10821220 | Instructions, Lp Conversion |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | W10845773 | Grate, Burner (center) |
|
$ 305.84 | |||||
| 3A | W10691229 | Cap, Burner (black (small) (right Front)) |
|
$ 106.25 | |||||
| 3B | W10691282 | Cap, Burner (black (dual) (center)) |
|
$ 160.59 | |||||
| 3C | W10691232 | Cap, Burner (black (large) (left Rear, Right Rear)) |
|
Immediately | $ 173.80 | ||||
| 4A | W10626017 | Screw, Burner Base (small Burner) |
|
Immediately | $ 20.18 | ||||
| 5A | W10691285 | Base, Burner (small (right Front)) |
|
$ 142.38 | |||||
| 5B | W10691430 | Base, Burner (dual (center)) |
|
$ 305.49 | |||||
| 5C | W10691284 | Base, Burner (large (left Rear, Right Rear)) |
|
Immediately | $ 175.85 | ||||
| 9A | W10691684 | Holder, Orifice (s2) (right Front) |
|
$ 97.73 | |||||
| 9B | W10845766 | Holder, Orifice (190mm) (center) |
|
$ 80.61 | |||||
| 9C | WPW10571492 | Holder, Orifice (155 Mm) (left Rear, Right Rear) (Replaces: W10571492) |
|
$ 86.40 |
