01 - Cover Sheet
02 - Top And Console Parts

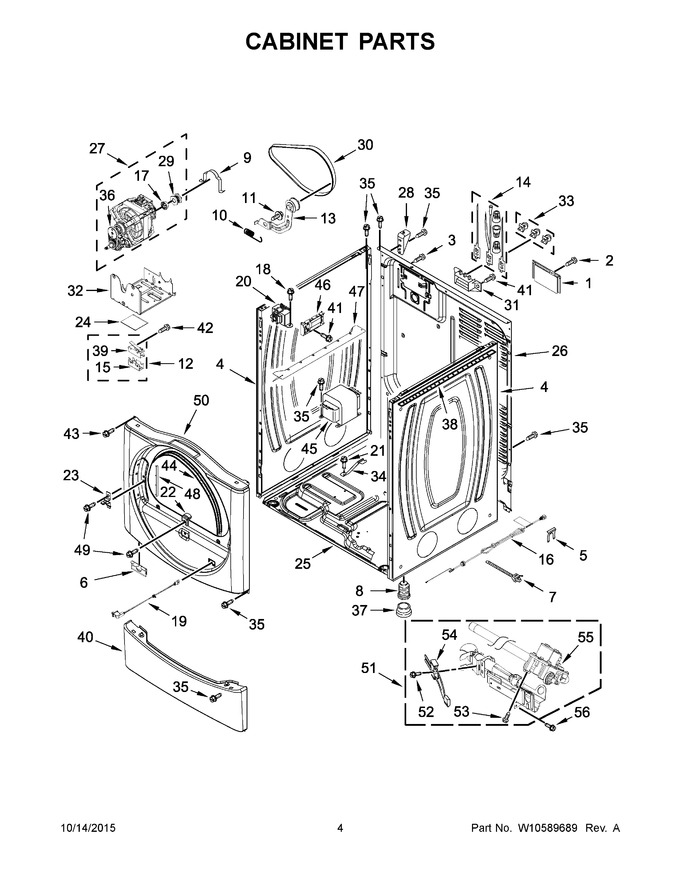

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10601020 | Cover, Terminal Block |
|
- | |||||
| 2 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 4 | W10542714 | Cabinet (white) |
|
$ 350.58 | |||||
| 5 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 6 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 22.17 | |||||
| 7 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 7.02 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 16 | WPW10476824 | Cord, Power (Replaces: W10476824) |
|
$ 27.24 | |||||
| 17 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 18 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 19 | W11192658 | Assembly, Door Switch (Replaces: W10459028) |
|
- | |||||
| 20 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 225.34 | |||||
| 21 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 22 | 8580015 | Ramp, Door |
|
$ 88.24 | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 8.65 | ||||
| 24 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 23.29 | |||||
| 25 | W11215531 | Base, Cabinet (Replaces: W10225178) |
|
$ 365.36 | |||||
| 26 | W10225180 | Panel, Rear |
|
- | |||||
| 27 | W11215537 | Assembly, Motor 50 Hz. (Replaces: W10747112) |
|
$ 560.48 | |||||
| 28 | W10137398 | Stop, Top Panel |
|
- | |||||
| 29 | W10167237 | Pulley |
|
- | |||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.66 | ||||
| 31 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | W10181903 | Bracket, Burner |
|
- | |||||
| 35 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 36 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 37 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 38 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 39 | W10410873 | Assembly, Switch Actuator |
|
- | |||||
| 40 | WP8540621 | Panel, Toe (white) (Replaces: 8540621) |
|
$ 189.38 | |||||
| 41 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 42 | 3400934 | Assembly, Screw And Insulator |
|
- | |||||
| 43 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | W10851673 | Transformer (Replaces: W10753690) |
|
$ 417.47 | |||||
| 46 | W11315680 | Board, Control (Replaces: W10166377) |
|
$ 597.59 | |||||
| 47 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 179.69 | |||||
| 48 | 8565043 | Plug, Front Panel |
|
$ 97.29 | |||||
| 49 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 50 | W11192661 | Panel, Front (white) (Replaces: W10551281) |
|
- | |||||
| 51 | W10096909 | Burner Assembly 50 Hz. (type 1 And 2) |
|
- | |||||
| 52 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 53 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 54 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 55 | WP8281918 | Valve Gas 50 Hz. (complete) (Replaces: 8281918) |
|
$ 242.35 | |||||
| 56 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| NI | W10470674 | Kit, 4-way Venting |
|
Immediately | $ 85.28 | ||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 80.90 | |||||
| NI | W11384794 | 10a Cord Adapter (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 28.04 |
