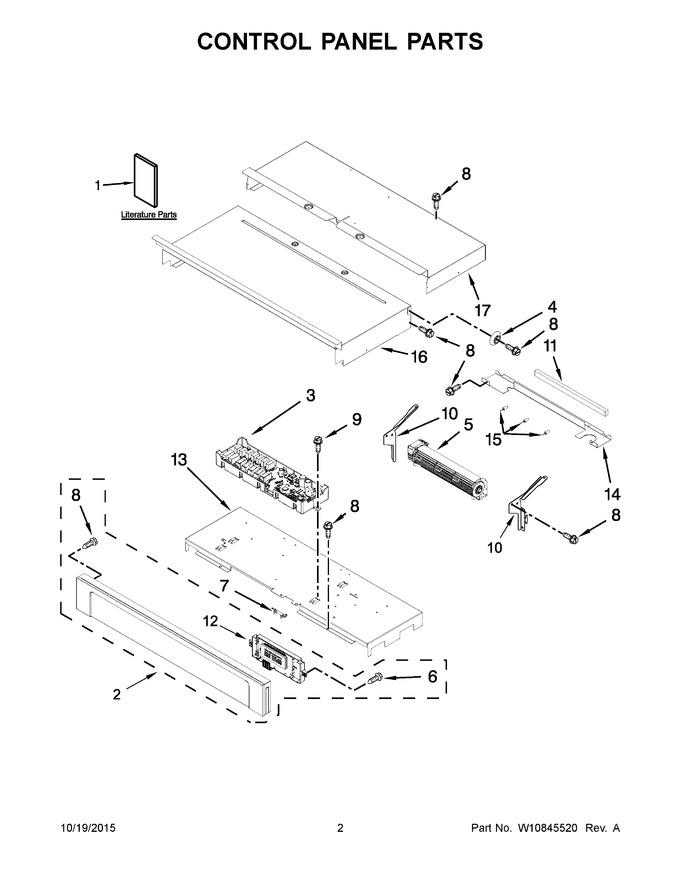

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10674133 | Instructions, Installation |
|
- | |||||
| 2 | W10812318 | Assembly, Control Panel (includes Overlay) (black) |
|
- | |||||
| 3 | W10842982 | Board, Main (Replaces: W10758880) |
|
$ 412.77 | |||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10661038 | Blower (lower) (Replaces: W10661038) |
|
$ 259.23 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10545291) |
|
Immediately | $ 35.50 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | WPW10752316 | Assembly, Display (Replaces: W10752316) |
|
Immediately | $ 423.85 | ||||
| 13 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10795607 | Guide, Use & Care |
|
- | |||||
| 1B | W10796080 | Sheet, Tech |
|
- | |||||
| 2A | W10812373 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 2B | W10812319 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 5A | W10641253 | Blower (upper) |
|
$ 127.63 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10774726 | Harness, Main |
|
- | |||||
| NI | W10573327 | Harness, Door Latch |
|
$ 67.67 | |||||
| NI | W11157775 | Harness, Eol (mrc) (Replaces: W10409840) |
|
$ 231.69 | |||||
| NI | W11157177 | Harness, Signal (Replaces: W10284931) |
|
$ 231.53 | |||||
| NI | W10679413 | Jumper Tod |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 |
