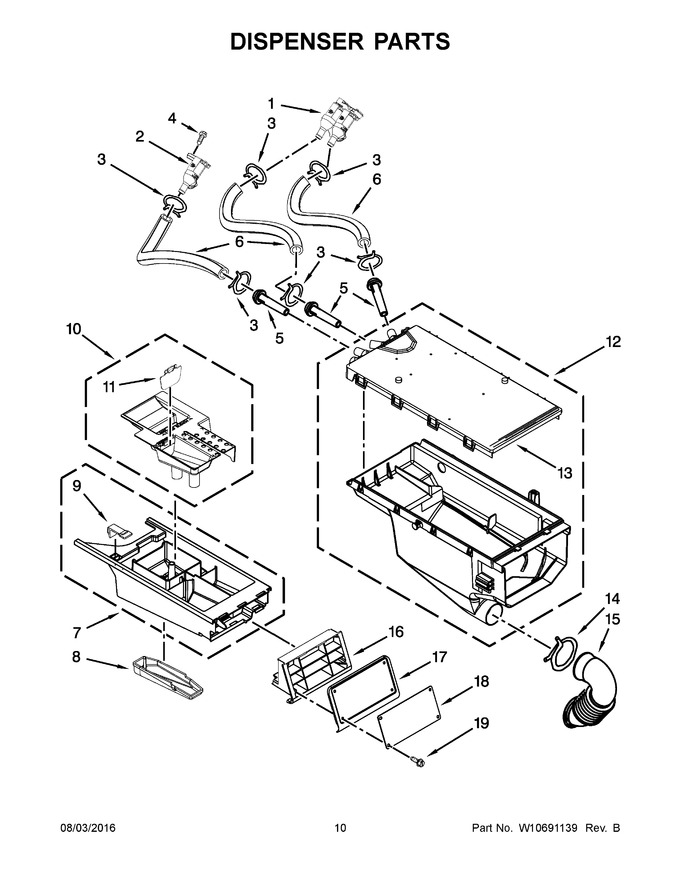

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316929 | Valve, Water Inlet (double) (Replaces: W10316929) |
|
$ 53.15 | |||||
| 2 | WPW10316932 | Valve, Water Inlet (single) (Replaces: W10316932) |
|
$ 42.95 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: W10096852) |
|
Immediately | $ 7.94 | ||||
| 4 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 5 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 85.34 | |||||
| 6 | W10803052 | Hose, Valve To Dispenser (Replaces: W10212611) |
|
$ 12.96 | |||||
| 7 | W10395619 | Drawer, Detergent (Replaces: W10376660) |
|
Immediately | $ 96.71 | ||||
| 8 | WP8540399 | Cover, Detergent Drawer (Replaces: 8540399) |
|
$ 70.73 | |||||
| 9 | WPW10198458 | Tab, Drawer Release (Replaces: W10198458) |
|
$ 6.99 | |||||
| 10 | W10433390 | Siphon, Bleach/softener (Replaces: W10679677) |
|
Immediately | $ 75.10 | ||||
| 11 | WPW10298953 | Door, Living Hinge (Replaces: W10298953) |
|
$ 6.08 | |||||
| 12 | W10364594 | Dispenser, Outer Housing (Replaces: W10212603) |
|
$ 284.75 | |||||
| 13 | WPW10212604 | Plate, Distribution (Replaces: W10212604) |
|
Immediately | $ 90.20 | ||||
| 14 | W11622908 | Clamp, Hose (Replaces: W10273032) |
|
$ 21.00 | |||||
| 15 | W11366227 | Hose, Dispenser To Tub (Replaces: 8540063) |
|
Immediately | $ 21.88 | ||||
| 16 | WPW10137432 | Handle, Drawer (Replaces: W10137432) |
|
Immediately | $ 55.30 | ||||
| 17 | WPW10137460 | Cover, Handle (Replaces: W10137460) |
|
Immediately | $ 98.87 | ||||
| 18 | W11188532 | Dispenser, Fascia (Replaces: W10804029) |
|
$ 183.74 | |||||
| 19 | WPW10137456 | Screw (Replaces: W10137456) |
|
$ 7.75 |
