SELECT A DIAGRAM

01 - Body


02 - Supplemental Information


03 - Top Assembly


04 - Wiring Information

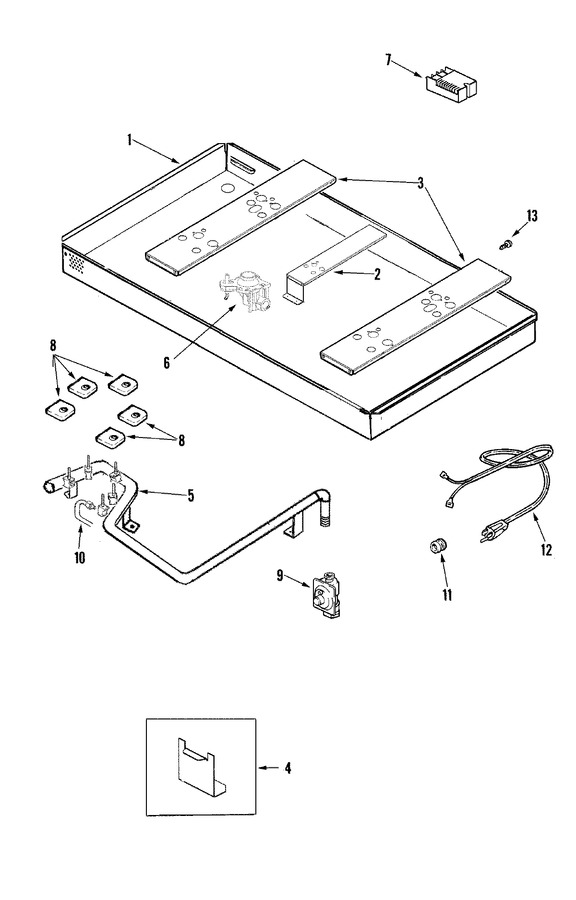

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74007797		Bottom, Burner Box	10	Appelez-nous	-
2	3801F876-51		Bracket, Orifice Holder (ctr)   (Replaces: 74007811)	10	Appelez-nous	-
3	74007787		Bracket, Orifice Holder	10	Appelez-nous	-
4	WP7101P062-60		Screw No.10 X 2   (Replaces: 7101P062-60)	10			$ 8.66
4	WP3801F935-51		Bracket, Tie Down   (Replaces: 74007709)	10			$ 43.27
5	WP74001380		Seal, Manifold Pipe   (Replaces: 74001380)	10			$ 68.73
5	74007920		Manifold Pipe/valve Assembly	10	Appelez-nous	-
6	WP7527P028-60		Holder, Orifice (12.5k)   (Replaces: 74007813)	10		Immediately	$ 117.56
6	WP74007691		Holder, Orifice (9.2k)   (Replaces: 74007691)	10		Immediately	$ 125.14
6	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 40.17
6	WP7527P026-60		Holder, Orifice (9.5k)   (Replaces: 74007814)	10		Immediately	$ 111.63
7	74007795		Bracket, Spark Module	10	Appelez-nous	-
7	8215557		Module, Spark   (Replaces: 74007397)	10		Immediately	$ 139.88
7	74004282		Module, Spark (2+0)	10			$ 195.66
8	WP74007806		Swtch/wire Lead Assy   (Replaces: 74007806)	10			$ 246.74
9	W11087445		Regulator, Pressure   (Replaces: 74007747)	10		Immediately	$ 211.40
10	74007819		Tube, Burner (ctr)	10			$ 28.90
10	74007820		Tube, Burner (rf)	10			$ 28.90
10	74007821		Tube, Burner (rr)	10	Appelez-nous	-
10	74007818		Tube, Burner (lr)	10			$ 28.90
10	74007815		Tube, Burner (lf)	10			$ 28.90
11	550707		Bushing - Strain Relief	10	Appelez-nous	-
12	74007817		Cord, Power	10	Appelez-nous	-
13	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
