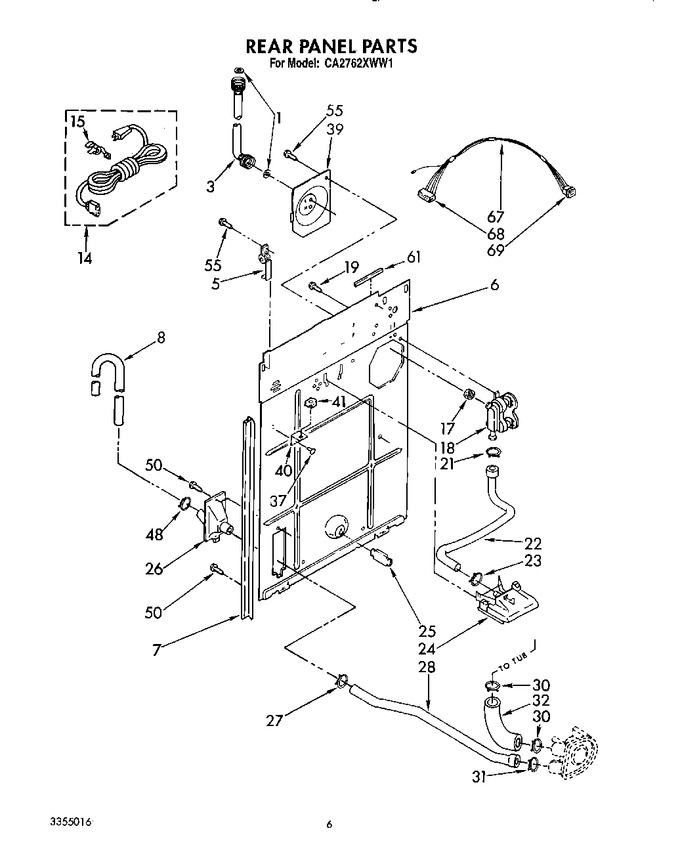

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 660028) |
|
Immediately | $ 24.09 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 285929 | Panel, Rear (Replaces: 3357692) |
|
$ 340.71 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 3354204) |
|
$ 27.57 | |||||
| 8 | WP96743 | Hose, Drain (Replaces: 96743) |
|
$ 106.08 | |||||
| 14 | 3348564 | Cord, Power |
|
- | |||||
| 15 | 62733 | Strain Relief, Power Cord To Rear Panel |
|
- | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 12.30 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 358992) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3390631 | Screw, 10-24 X 3/8 (2) (Replaces: 62863) |
|
$ 8.25 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 660632) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3348552) |
|
$ 89.09 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 12.31 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 28.99 | ||||
| 37 | 63554 | Rivet |
|
- | |||||
| 39 | 285930 | Plate, Mixing Valve (Replaces: 3347682) |
|
$ 78.29 | |||||
| 40 | 3347824 | Bracket, Top Lock |
|
- | |||||
| 41 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 9.09 | |||||
| 48 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 55 | WP308685 | Screw, Hinge To Rear Panel (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 61 | 303294 | Edge Protector |
|
- | |||||
| 67 | 3355803 | Harness, Timer (includes Illus. 68 & 69) |
|
$ 70.93 | |||||
| 68 | W10876590 | Block, Timer Disconnect (Replaces: 352089) |
|
$ 13.40 | |||||
| 69 | 96895 | Cap, Terminal |
|
- |
