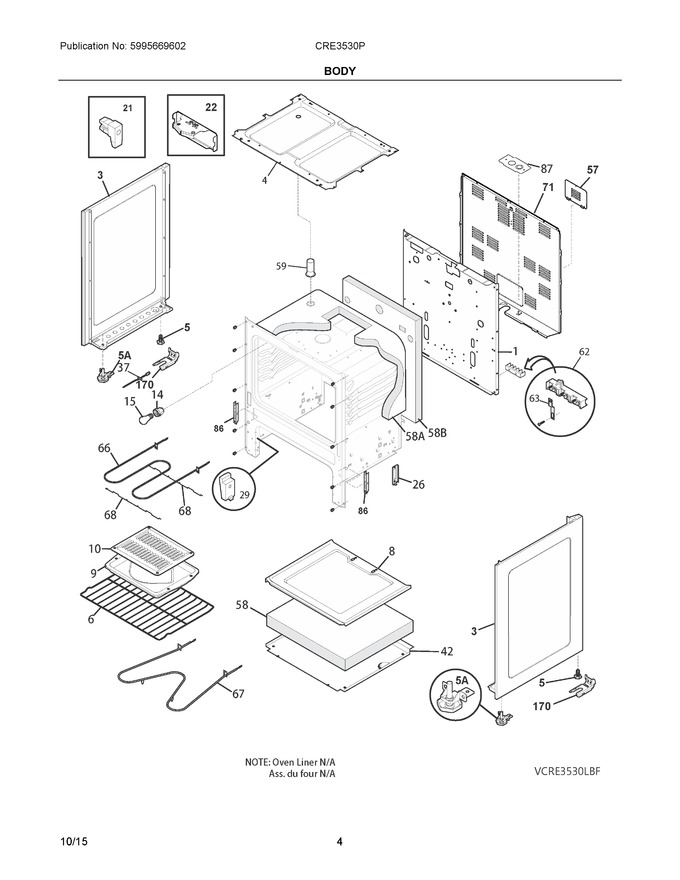

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201301		Back, Main		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 149.65
4	5304522901		Burner Box   (Replaces: 316201409)				$ 95.21
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316067902		Rack, Oven, (2)			Immediately	$ 114.56
8	316495903		Panel, Oven Bottom				$ 108.68
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 22.75
21	316408000		Clip, Bodyside				$ 20.22
22	316286300		Bracket-bodyside, (2)				$ 19.69
26	316206300		Support, Chassis, (2)				$ 21.91
29	807047102		Glide, Drawer, Front   (Replaces: 316407301)			Immediately	$ 26.47
37	316233903		Probe, Oven Temp   (Replaces: 316233902)			Immediately	$ 63.65
42	316547400		Shield, Wool, Lower				$ 87.18
57	316283600		Cover, Access				$ 13.89
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073605		Tube, Oven Vent				$ 89.78
62	5303935271		Terminal Block Kit				$ 81.73
63	316542600		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil			Immediately	$ 182.72
67	316075103		Element, Bake			Immediately	$ 47.07
68	316203400		Support, Broil Element				$ 78.76
71	316283204		Shield, Rear Wall   (Replaces: 316283200)				$ 62.36
86	316441300		Receptacle, Hinge				$ 24.41
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit, Assembly			Immediately	$ 21.01
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 148.81
58A	316047707		Insulation, 1", Oven Wrapper				$ 167.69
58B	316054202		Insulation, 1", Oven Back				$ 85.10
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 16.76
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304516151		Harness, Wiring, Main   (Replaces: 316580000)				$ 76.11
NI	316256200		Plug, Button, Oven Button		Appelez-nous	-
NI	316210800		Plug, Hole, Light Switch				$ 11.81
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIA	316248900		Spacer, Shield, Rear Wall		Appelez-nous	-
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIC	316541700		Template, Anti-tip		Appelez-nous	-
