01 - Cover Sheet

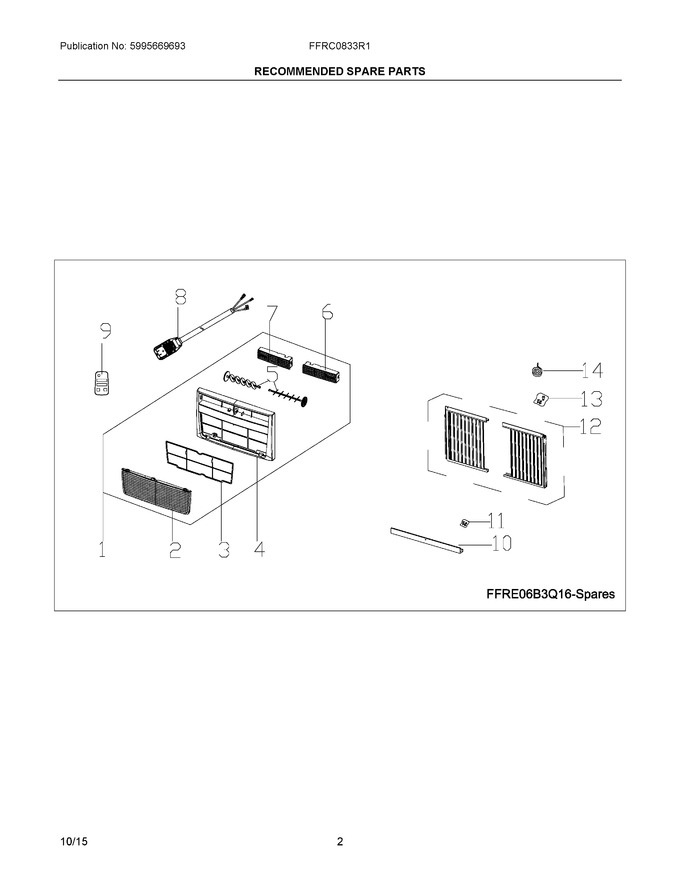

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304477067 | Front Assembly, Complete Panel |
|
- | |||||
| 2 | 5304477047 | Panel, Front Grille, Tilt-out |
|
$ 28.04 | |||||
| 3 | 5304536669 | Filter, Air, Plastic Frame (Replaces: 5304477048) |
|
$ 9.48 | |||||
| 4 | 5304477068 | Frame, Front Assembly |
|
$ 81.85 | |||||
| 5 | 5304477050 | Louver, Vertical |
|
- | |||||
| 6 | 5304477051 | Louver, Horizontal, Right |
|
- | |||||
| 7 | 5304477052 | Louver, Horizontal, Left |
|
- | |||||
| 8 | 5304500923 | Power Cord, Electric, Lcdi |
|
- | |||||
| 9 | 5304501872 | Remote Control, Transmitter, Smart |
|
- | |||||
| 10 | 5304477054 | Rail, Shutter Track, Top |
|
$ 50.09 | |||||
| 11 | 5304472191 | Screw Kit, Top Rail Mount |
|
$ 16.22 | |||||
| 12 | 5304520836 | Window Filler Kit, Slider Panels (Replaces: 5304495917) |
|
- | |||||
| 13 | 5304491953 | Hardware, Mounting, Screws/locks |
|
$ 19.52 | |||||
| 14 | 5304472211 | Seal Kit, Foam, Sash Filler |
|
$ 36.12 |
