SELECT A DIAGRAM

01 - Cover Sheet

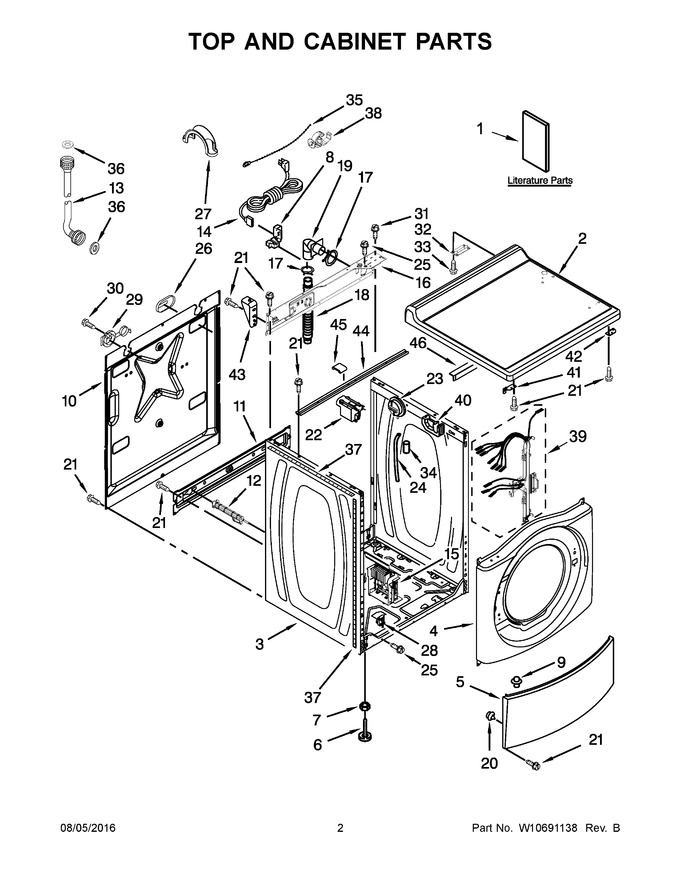

02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump And Motor Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10740348		Installation Instructions		Appelez-nous	-
2	W11622909		Top (white)   (Replaces: W10137410)		Appelez-nous	-
3	W10198145		Cabinet (white)		Appelez-nous	-
4	WPW10306505		Panel, Front (white)   (Replaces: W10306505)				$ 337.20
5	WP8540664		Panel, Toe (white)   (Replaces: 8540664)				$ 339.40
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 11.90
7	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 6.80
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 15.80
9	8518891		Rivet				$ 12.66
10	W10258342		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 40.82
12	W10763471		Bolt, Shipping (set Of 4)   (Replaces: W10251449)				$ 37.92
13	W10458855		Hose, Water Inlet (hot)		Appelez-nous	-
14	W11764783		Cord, Power   (Replaces: W10205500)				$ 43.66
15	WPW10384849		Unit, Motor Control   (Replaces: W10384849)			Immediately	$ 335.90
16	W10244560		Brace, Rear				$ 84.69
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
18	WPW10106460		Hose, Drain Outer   (Replaces: W10106460)				$ 25.81
19	W11757170		Connector, Hose Outlet   (Replaces: W10003260)			Immediately	$ 6.04
20	238614		Bumper				$ 76.31
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.34
22	WPW10367632		Filter, Interference   (Replaces: W10339736)				$ 115.50
23	WPW10448876		Sensor, Pressure   (Replaces: W10448876)			Immediately	$ 60.11
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 31.71
25	8540479		Screw, Grounding				$ 8.30
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.57
27	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
28	WPW10085220		Microswitch   (Replaces: W10085220)				$ 31.42
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 21.55
30	8182201		Screw   (Replaces: 8540727)				$ 12.67
31	8540329		Screw		Appelez-nous	-
32	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 103.81
33	WP488627		Screw   (Replaces: 342055)				$ 7.30
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
35	WPW10339879		Tie, Cable (beaded)   (Replaces: 3347868)				$ 7.47
36	WP16123		Washer, Hose   (Replaces: W10242307)				$ 7.34
37	W10693220		Seal, Foam		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 8.59
38	W10190263		Clip, Harness		Appelez-nous	-
39	W11025121		Harness, Wiring (lower Main)   (Replaces: W10664387)				$ 112.13
40	8540643		Bracket, Spring				$ 11.57
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop, Top Panel		Appelez-nous	-
44	WP8540721		Brace, Top   (Replaces: 8540721)				$ 47.03
45	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 25.56
46	WPW10342663		Angle, Support Top   (Replaces: W10342663)				$ 134.62
13A	W10458856		Hose, Water Inlet (cold)		Appelez-nous	-
1A	W10746735		Tech Sheet (english)		Appelez-nous	-
1B	W10746736		Tech Sheet (french)		Appelez-nous	-
NI	W10689498		Ccu To Door Lock - Power		Appelez-nous	-
NI	W10664395		Ccu To Mcu - Serial Communication (3 Pole)		Appelez-nous	-
NI	W10689497		Ccu To Mcu - Power (2 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
