View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

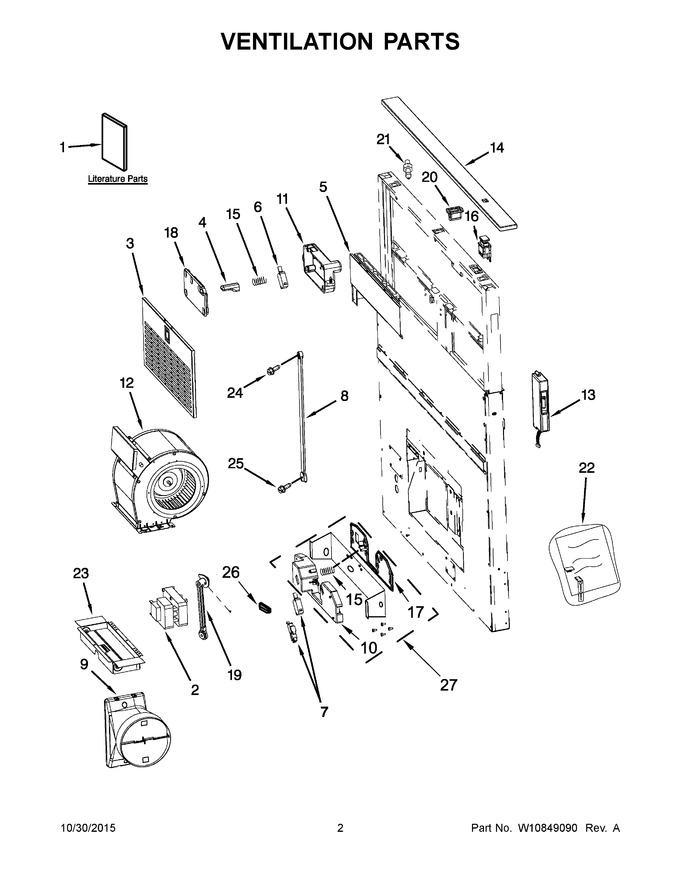

02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10342490 | Use & Care Guide/install Instructs |
|
- | |||||
| 2 | WPW10398274 | Motor, Plenum (Replaces: W10398274) |
|
Immediately | $ 304.13 | ||||
| 3 | W10422879 | Filter, Grease (30" Model) |
|
$ 233.17 | |||||
| 4 | W10421258 | Button, Filters (Replaces: W10798399) |
|
$ 15.75 | |||||
| 5 | W10798407 | Cover, Front (30" Model) |
|
- | |||||
| 6 | W11666423 | Microswitch (Replaces: W10398343) |
|
Immediately | $ 80.15 | ||||
| 7 | WPW10398341 | Microswitch (Replaces: W10398341) |
|
Immediately | $ 71.55 | ||||
| 8 | WPW10421280 | Arm, Upper (Replaces: W10421280) |
|
$ 90.77 | |||||
| 9 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 179.54 | |||||
| 10 | W10798401 | Cover, Back Switch Holder Plenum Motor |
|
$ 73.69 | |||||
| 11 | W11666423 | Cover, Back Switch Holder Filters (Replaces: W10421257) |
|
Immediately | $ 80.15 | ||||
| 12 | W11672683 | Blower, Assembly (Replaces: W10849492) |
|
Immediately | $ 643.50 | ||||
| 13 | WPW10421481 | Control, Hood (Replaces: W10421481) |
|
Immediately | $ 413.12 | ||||
| 14 | W10422148 | Trim, Top (30" Stainless) |
|
$ 226.29 | |||||
| 15 | WPW10469579 | Spring, Button (Replaces: W10469579) |
|
Immediately | $ 18.21 | ||||
| 16 | W11230930 | Button, Control (Replaces: W10421483) |
|
Immediately | $ 95.76 | ||||
| 17 | W11097343 | Cover, Front Switch Holder Plenum Motor (Replaces: W10798403) |
|
$ 67.74 | |||||
| 18 | W11666423 | Cover, Front Switch Holder Filters (Replaces: W10421256) |
|
Immediately | $ 80.15 | ||||
| 19 | WPW10421277 | Arm, Lower (Replaces: W10421277) |
|
Immediately | $ 76.17 | ||||
| 20 | WPW10421518 | Clip, Top Trim (Replaces: W10421518) |
|
$ 8.40 | |||||
| 21 | W10421517 | Clip, Top Trim |
|
$ 8.15 | |||||
| 22 | W11123695 | Hardware, Install (Replaces: W10422159) |
|
$ 110.00 | |||||
| 23 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 24 | WPW10422765 | Screw Upper (Replaces: W10422765) |
|
$ 24.77 | |||||
| 25 | WPW10422764 | Screw Lower (Replaces: W10422764) |
|
Immediately | $ 24.23 | ||||
| 26 | WPW10681777 | Cam, Plenum Arm Lower (Replaces: W10681777) |
|
Immediately | $ 68.10 | ||||
| 27 | W10833182 | Assembly, Drive Motor Switch (Replaces: W10801493) |
|
Immediately | $ 157.35 | ||||
| 14A | W11561956 | Trim, Top (36" Stainless) (Replaces: W10422150) |
|
$ 283.62 | |||||
| 3A | W10422880 | Filter, Grease (36" Model) |
|
$ 166.55 | |||||
| 5A | W10421449 | Cover, Front (36" Model) (Replaces: W10798400) |
|
$ 177.80 | |||||
| NI | W11174412 | Accessories, 30" Tape Kit (Replaces: W10798405) |
|
$ 106.28 | |||||
| NI | W11174413 | Accessories, 36" Tape Kit (Replaces: W10798404) |
|
$ 110.00 | |||||
| NI | W10387676 | Accessories, Trim, Top (30" Black) |
|
$ 114.31 | |||||
| NI | W10387677 | Accessories, Trim, Top (36" Black) |
|
$ 126.01 |
