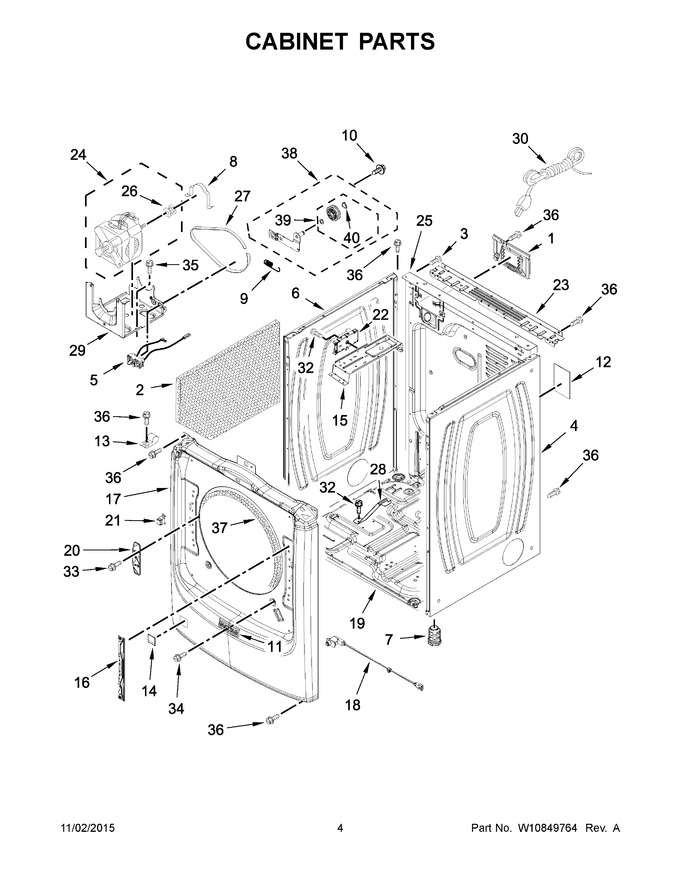

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | W10123956 | Panel, Dampening |
|
- | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | W11310043 | Panel, Side (right) (white) (Replaces: W10469589) |
|
$ 308.13 | |||||
| 5 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 54.97 | |||||
| 6 | W11233548 | Panel, Side (left) (white) (Replaces: W10468495) |
|
$ 261.33 | |||||
| 7 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 8 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 9 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 10 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 11 | W10908007 | Badge, Maytag (Replaces: W10639171) |
|
$ 64.00 | |||||
| 12 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 13 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 14 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 15 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 16 | W10315109 | Bracket, Door Hinge |
|
- | |||||
| 17 | W11123144 | Panel, Front (white) (Replaces: W10651060) |
|
Immediately | $ 210.49 | ||||
| 18 | W11427601 | Door Switch, Snap In (Replaces: W10688148) |
|
$ 76.53 | |||||
| 19 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 20 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 21 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 22 | W10849080 | Board, Control (Replaces: W10804446) |
|
Immediately | $ 402.71 | ||||
| 23 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 24 | W11511154 | Assembly, Motor (Replaces: W10806760) |
|
Immediately | $ 282.52 | ||||
| 25 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 26 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 27 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 105.32 | ||||
| 28 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 29 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 30 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 31 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 32 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 33 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 34 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 35 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 36 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 38 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 39 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 40 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 9.68 | ||||
| 14A | W10391496 | Plug, Front Panel (chrome Shadow) |
|
- | |||||
| 17A | W11203814 | Panel, Front (chrome Shadow) (Replaces: W10637127) |
|
$ 326.14 | |||||
| 4A | W11321018 | Panel, Side (right) (chrome Shadow) (Replaces: W10474189) |
|
$ 310.75 | |||||
| 6A | W11315726 | Panel, Side (left) (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 321.64 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 89.96 |
