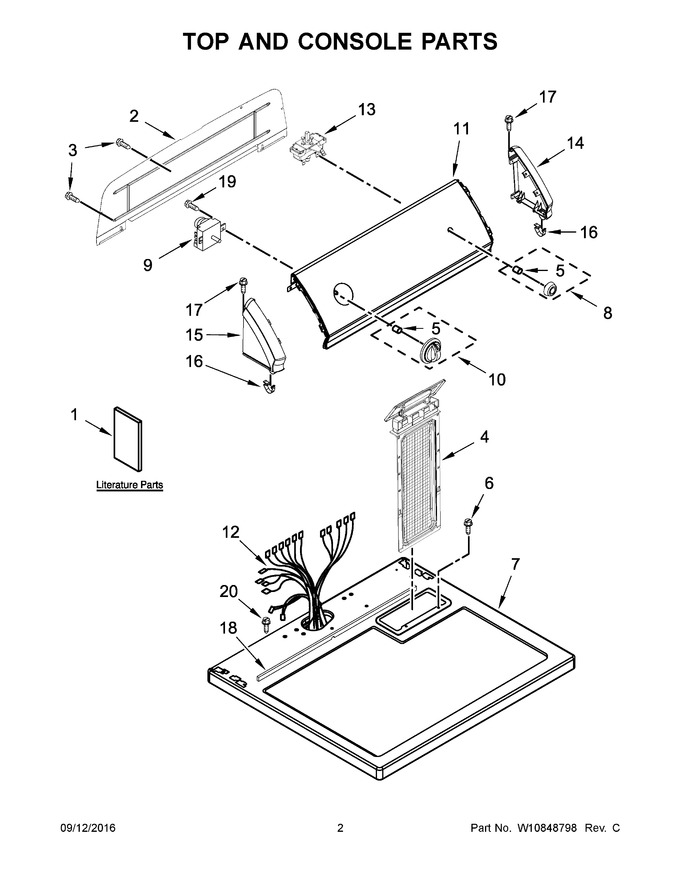

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848818		Installation Instructions		Appelez-nous	-
2	W10103406		Panel, Rear   (Replaces: 8274261)				$ 121.78
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
5	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
6	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
7	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
8	W10317459		Knob, Push To Start (grey)		Appelez-nous	-
9	W10857609		Timer Assembly (60 Hz.)   (Replaces: W10745652)				$ 374.65
10	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
11	W10784710		Panel, Control		Appelez-nous	-
12	W10186074		Harness, Wiring 2-position (gas Valve)		Appelez-nous	-
13	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 25.18
14	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 65.49
15	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 65.69
16	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
18	W10316616		Seal, Foam				$ 25.01
19	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
20	W10850756		Screw   (Replaces: W10773242)				$ 7.38
1A	W10096992		Use & Care Guide		Appelez-nous	-
1B	W10185989		Wiring Diagram		Appelez-nous	-
