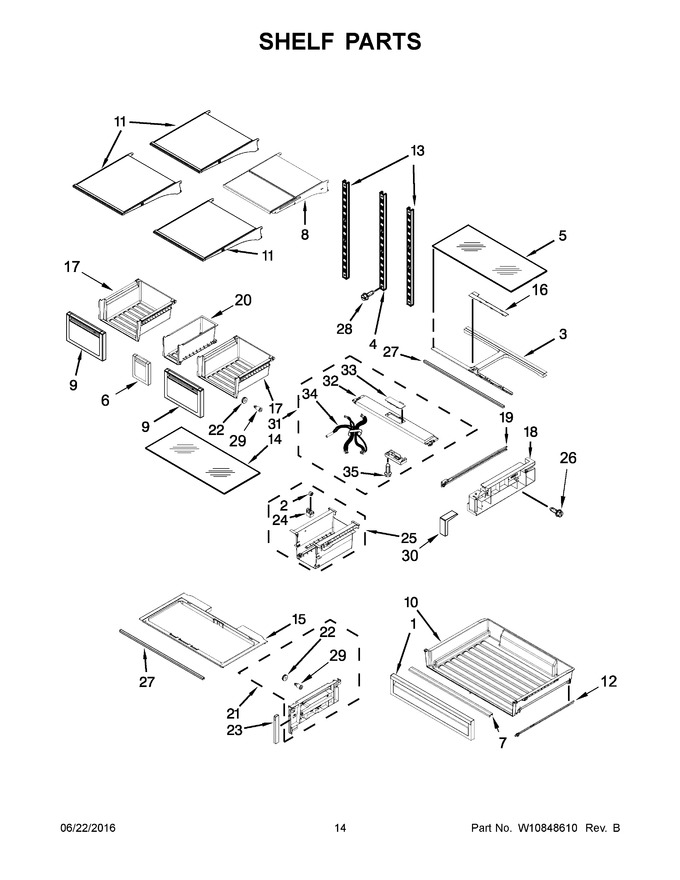

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 105.60
2	W10248789		Roller, Center				$ 19.37
3	WPW10489978		Support, Pantry   (Replaces: W10489978)				$ 56.24
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	WPW10628815		Glass, Pantry   (Replaces: W10628815)				$ 148.12
6	W11218695		Crisper, Front   (Replaces: W10423520)				$ 325.33
7	W10398002		Handle, Pantry				$ 119.70
8	WPW10401836		Shelf, Tuck   (Replaces: W10401836)				$ 273.82
9	WPW10688114		Assembly, Crisper Front   (Replaces: W10688114)			Immediately	$ 176.39
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 150.55
11	WPW10402687		Shelf, Fixed   (Replaces: W10402687)				$ 218.73
12	W10508330		Runner, Roller (left Hand)		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	W10628814		Glass, Crisper				$ 56.29
15	W10717569		Cover, Crisper		Appelez-nous	-
16	W10490266		Support, Pantry Cover				$ 87.36
17	W10850377		Pan, Crisper   (Replaces: W10387757)			Immediately	$ 137.11
18	WPW10498906		Sideplate, Pantry (left Hand)   (Replaces: W10498906)				$ 132.04
19	W10508327		Slide, Pantry (left Hand)				$ 301.07
20	WPW10387778		Pan, Crisper   (Replaces: W10387778)				$ 127.48
21	W11763411		Sideplate, Crisper (left Hand)   (Replaces: W10549601)				$ 64.80
22	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
23	W10467415		Plate, Crisper Front				$ 72.29
24	W10530314		Housing, Roller				$ 11.36
25	W10662015		Assembly, Center Crisper Support				$ 87.71
26	WP8281136		Screw   (Replaces: 8281136)				$ 7.30
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
30	W10467416		Plate, Pantry Front				$ 38.26
31	W11044862		Assembly, Pantry Front Cover (includes Led Assembly)   (Replaces: W10724664)				$ 319.62
32	W10398004		Cover, Top		Appelez-nous	-
33	W10807389		Assembly, User Interface   (Replaces: W10724666)				$ 575.09
34	W10442183		Assembly, Pantry Wire (includes Thermistor)				$ 119.45
35	W11311945		Screw   (Replaces: 12990204)				$ 14.72
12A	W10508328		Runner, Roller (right Hand)		Appelez-nous	-
18A	WPW10498902		Sideplate, Pantry (right Hand)   (Replaces: W10498902)				$ 69.42
19A	W10508326		Slide, Pantry (right Hand)				$ 311.48
21A	W10549602		Sideplate, Crisper (right Hand)				$ 126.18
