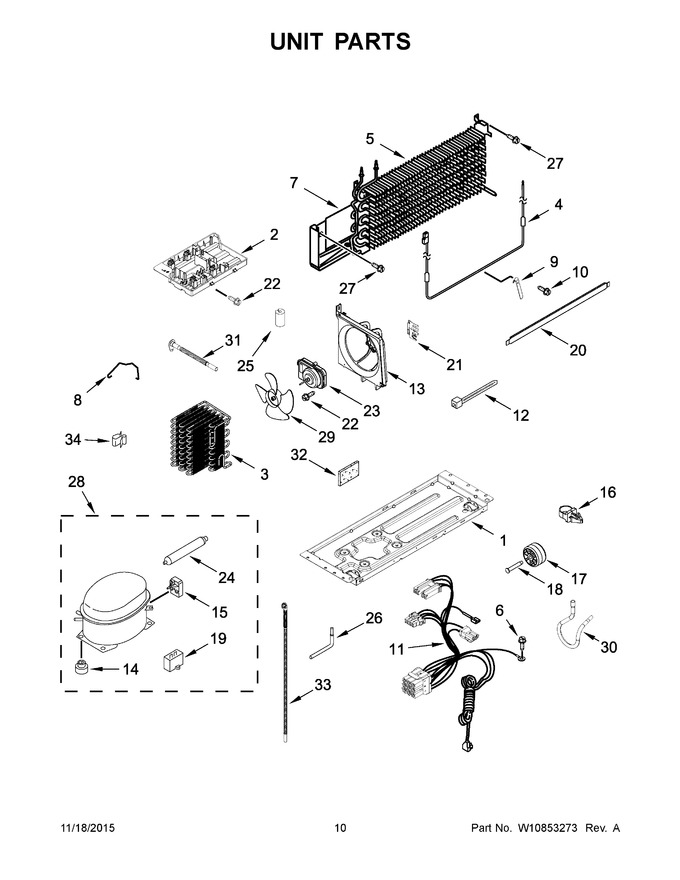

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10624648		Support Plate, Compressor   (Replaces: W10638694)				$ 101.99
2	W10633582		Tray, Evaporator				$ 93.87
3	W11803146		Condenser   (Replaces: W10633575)			Immediately	$ 221.57
4	W10405108		Heater, Defrost		Appelez-nous	-
5	W10836706		Assembly, Evaporator   (Replaces: W10570565)			Immediately	$ 431.27
6	WP489128		Screw   (Replaces: 488500)				$ 11.40
7	WPW10314195		Shield, Heat   (Replaces: W10314195)				$ 101.34
8	W10801781		Strap, Bale		Appelez-nous	-
9	W11807361		Heat Probe   (Replaces: 2258429)				$ 20.12
10	WP489478		Screw   (Replaces: 489478)				$ 8.18
11	W10797920		Harness, Unit		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	W11736795		Bracket, Fan   (Replaces: W10633579)			Immediately	$ 71.48
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
15	WP2312007		Start Device   (Replaces: 2312007)				$ 189.69
16	2219077		Clip, Harness				$ 64.24
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	W10801770		Capacitor		Appelez-nous	-
20	W10300902		Cover, Heater				$ 29.57
21	W10314197		Bracket, Evaporator				$ 23.44
22	W10829281		Screw   (Replaces: W10622701)				$ 13.28
23	W10527160		Motor, Condenser Fan		Appelez-nous	-
24	W10843121		Drier   (Replaces: W10669573)			Immediately	$ 57.13
25	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
26	W10831950		Tube, Process		Appelez-nous	-
27	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
28	W10183407		Compressor   (Replaces: W10120455)				$ 435.61
29	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
30	W10756329		Tube, Suction		Appelez-nous	-
31	W10646247		Extension, Drain Tube				$ 26.33
32	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
33	W10633573		Tube, Drain			Immediately	$ 35.19
34	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 4.2 Oz (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
