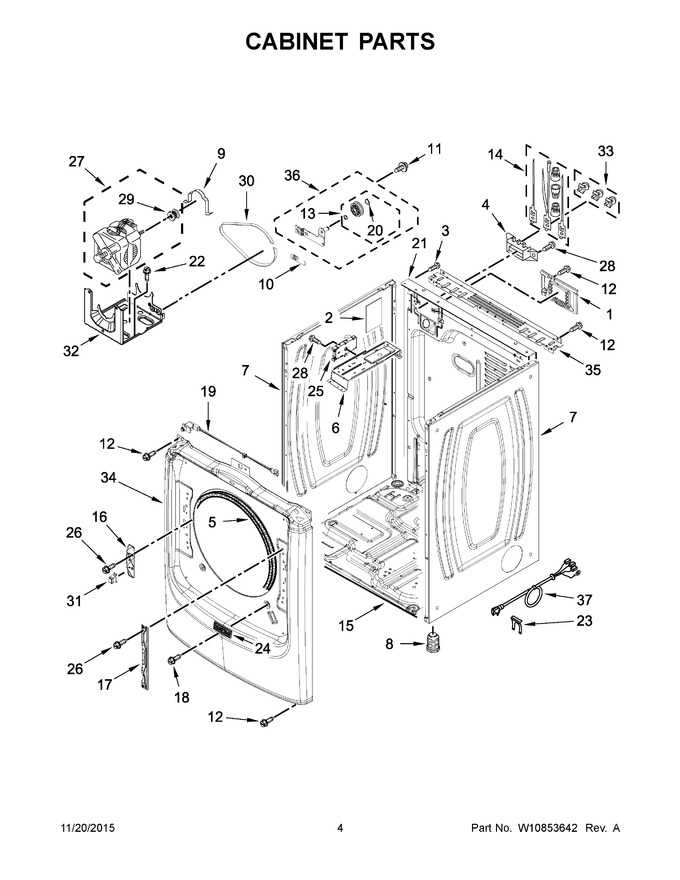

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 104.04 | |||||
| 2 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 3 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 5 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 6 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 7 | W11233548 | Panel, Side (white) (Replaces: W10468495) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 16 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 17 | W10315109 | Bracket, Door Hinge |
|
- | |||||
| 18 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 19 | W11427601 | Door Switch, Snap In (Replaces: W10688148) |
|
$ 76.53 | |||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 23 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 24 | W10908007 | Badge, Maytag (Replaces: W10639171) |
|
$ 64.00 | |||||
| 25 | W10849080 | Board, Control (Replaces: W10804446) |
|
Immediately | $ 348.55 | ||||
| 26 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 27 | W11511154 | Assembly, Motor (Replaces: W10806760) |
|
Immediately | $ 282.52 | ||||
| 28 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 105.32 | ||||
| 31 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 94.84 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | W11123144 | Panel, Front (white) (Replaces: W10651060) |
|
Immediately | $ 210.49 | ||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 36 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 37 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.45 | ||||
| 34A | W11203814 | Panel, Front (chrome Shadow) (Replaces: W10637127) |
|
$ 326.14 | |||||
| 7A | W11315726 | Panel, Side (chrome Shadow) (Replaces: W10468496) |
|
Immediately | $ 321.64 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 89.96 |
