01 - Cover Sheet

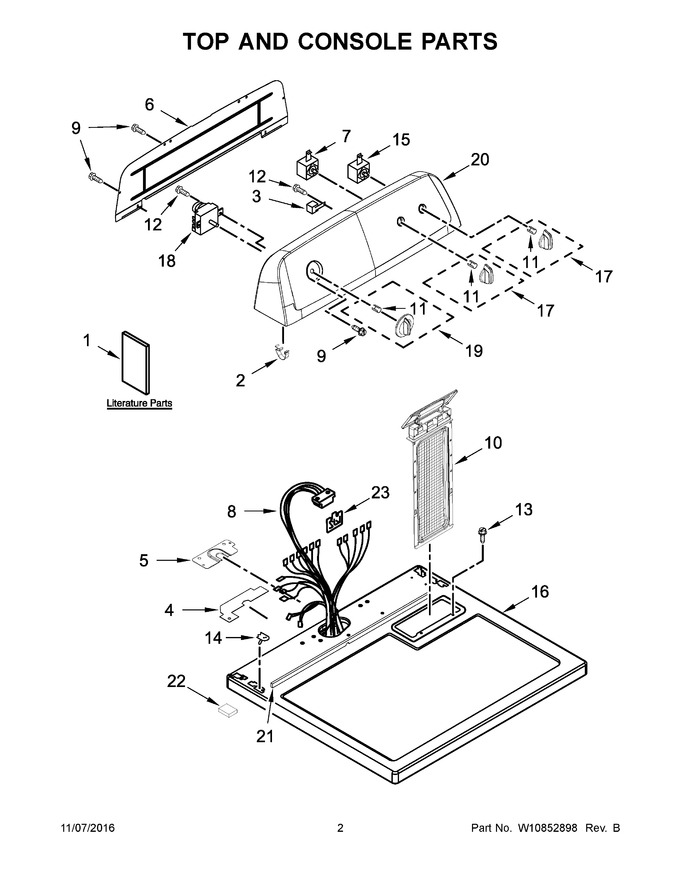

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848818		Installation Instructions		Appelez-nous	-
1	W10514185		Installation Instructions		Appelez-nous	-
2	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	W10112603		Seal, Harness		Appelez-nous	-
5	W10112578		Bracket, Harness		Appelez-nous	-
6	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
7	W10701552		Switch, Rotary				$ 100.70
8	W10768818		Harness, Wiring				$ 165.67
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
15	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 54.76
18	W11399035		Assembly, Timer   (Replaces: W10685025)				$ 364.34
19	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
20	W11100675		Assembly, Control Panel (white)   (Replaces: W10779328)		Appelez-nous	-
21	W10316616		Seal, Foam				$ 27.79
22	3389682		Spacer, Toe Panel				$ 9.23
23	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
1A	W10096991		Use And Care Guide		Appelez-nous	-
1B	W10185994		Wiring Diagram		Appelez-nous	-
1C	W10781874		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
