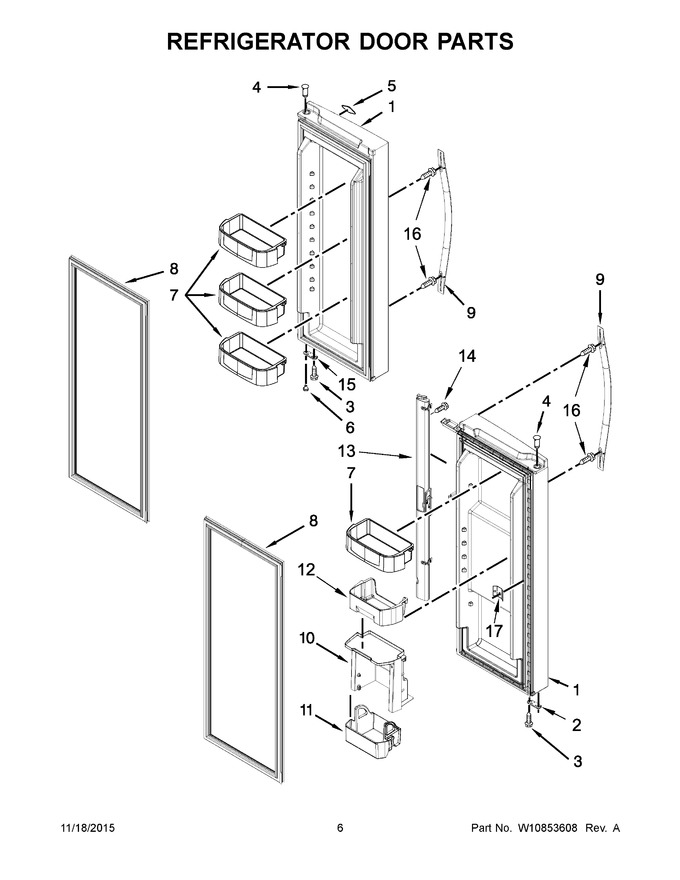

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10393587 | Refrigerator Door (includes #8) (left Hand (white)) (Replaces: W10393587) |
|
$ 603.02 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11544568 | White (Replaces: W10366270) |
|
Immediately | $ 13.95 | ||||
| 5 | W11178521 | Badge, Whirlpool (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 8 | W10460612 | Gasket, Rc (beige) (Replaces: W10353189) |
|
Immediately | $ 312.32 | ||||
| 9 | W11459378 | Handle Assembly (stainless) (Replaces: W10686482) |
|
Immediately | $ 183.89 | ||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 103.80 | |||||
| 11 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 106.98 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 64.79 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 132.60 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 15 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 36.94 | ||||
| 16 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 17 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 1A | LW10353181 | Refrigerator Door (includes #8) (right Hand (white)) (Replaces: W10353181) |
|
$ 823.57 |
