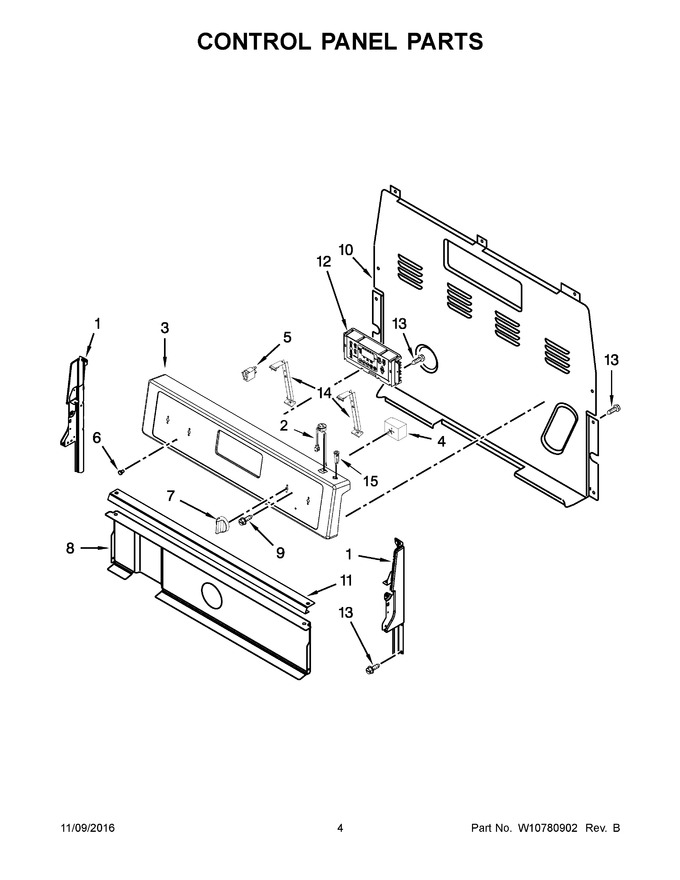

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10849725 | Receptacle (white) (Replaces: W10749727) |
|
Immediately | $ 80.79 | ||||
| 3 | W11231947 | Console (white) (Replaces: W10714872) |
|
Immediately | $ 492.28 | ||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10853029 | Knob (white) (Replaces: W10676214) |
|
Immediately | $ 38.27 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W11122546 | Control, Range (lcc95) (white) (Replaces: W10834006) |
|
$ 502.99 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 15 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 12A | W11122551 | Control, Range (lcc95) (black) (Replaces: W10834004) |
|
$ 501.60 | |||||
| 12B | W11122543 | Control, Range (lcc95) (stainless) (Replaces: W10834007) |
|
$ 502.99 | |||||
| 15A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1B | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1C | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2A | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 18.47 | ||||
| 3A | W10714873 | Console (black) |
|
$ 164.18 | |||||
| 3B | W11251229 | Console (stainless) (Replaces: W10714880) |
|
Immediately | $ 482.64 | ||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4B | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 7A | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 38.09 |
