SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Console And Dispenser Parts

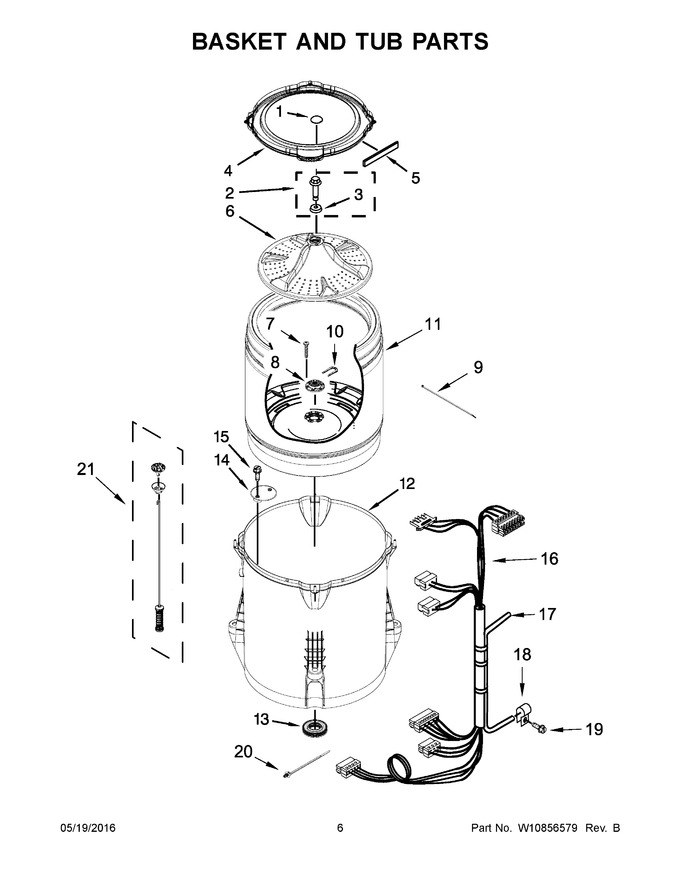

04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305259		Cap, Impeller   (Replaces: W10305259)				$ 23.63
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	W10215146		Tub Ring				$ 84.89
5	W10205824		Absorber, Impact				$ 80.64
6	WPW10215115		Impeller (washplate)   (Replaces: W10215115)				$ 313.32
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10528947		Hub - Driven, Basket   (Replaces: W10396887)			Immediately	$ 44.23
9	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
10	W11385424		Retainer, Drive Block   (Replaces: W10402178)			Immediately	$ 12.97
11	WPW10521297		Basket Assembly   (Replaces: W10521297)				$ 512.88
12	W10324648		Tub   (Replaces: W10238301)				$ 361.85
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
15	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 8.26
16	W10746356		Harness, Lower, Includes Hose Pressure Switch		Appelez-nous	-
17	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
18	W10005430		Clamp, Cable			Immediately	$ 9.53
19	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
20	WPW10339879		Cable Tie   (Replaces: W10267532)				$ 8.30
21	W10780051		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10748951)			Immediately	$ 248.97

    View Diagram in Separate Window       Print Part List
