01 - Cover Sheet

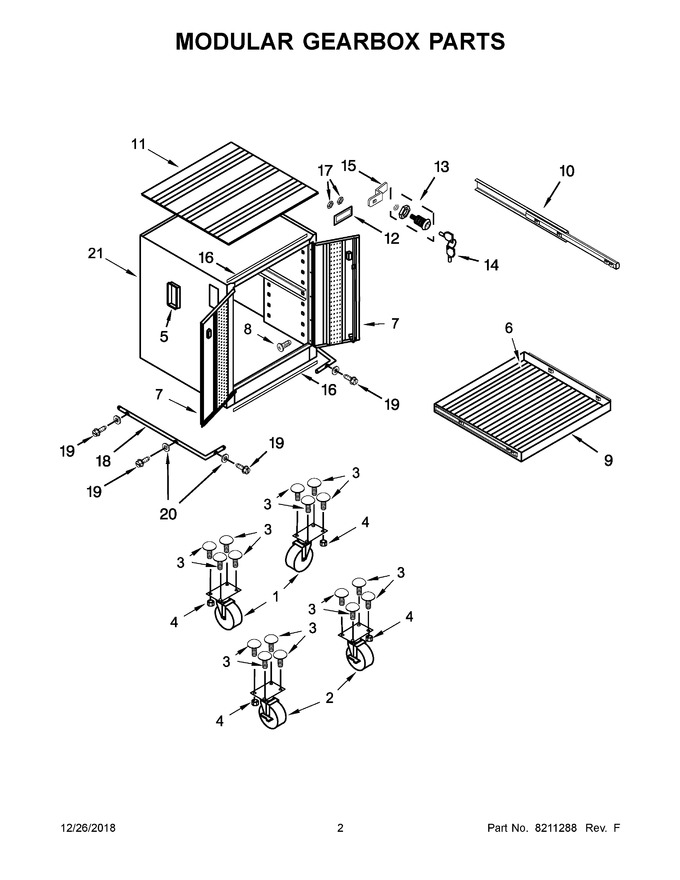

02 - Modular Gearbox Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 76.42
2	W10741533		Caster, Rigid 5" With Brake (left Hand)   (Replaces: 8211251)		Appelez-nous	-
3	WP8204609		Bolt   (Replaces: 8204609)				$ 69.70
4	WP8204610		Nut, Nylon   (Replaces: 8204610)				$ 12.39
5	W10914558		Handle, Plastic   (Replaces: 8204603)				$ 7.59
6	WP8204604		Liner, Drawer   (Replaces: 8204604)				$ 85.94
7	8211268		Door (includes Handle) (silver Tread Plate, Left Hand)		Appelez-nous	-
8	WPW10001180		Screw   (Replaces: 8204616)				$ 8.05
9	8204635		Tray And Guide, Cabinet				$ 75.24
10	WP8211252		Slide, Drawer   (Replaces: 8211252)				$ 84.70
11	8204605		Mat, Top		Appelez-nous	-
12	W10554071		Nameplate, Gladiator		Appelez-nous	-
13	W11557659		Lock Assembly   (Replaces: 8204607)				$ 63.98
14	W11383363		Keys   (Replaces: 8204608)				$ 7.31
15	W10554082		Cam		Appelez-nous	-
16	W11321873		Magnet   (Replaces: 8211280)		Appelez-nous	-
17	8211261		Clip, Nameplate		Appelez-nous	-
18	8204634		Bumper		Appelez-nous	-
19	W11513230		Screw   (Replaces: W10554088)		Appelez-nous	-
20	WP8211254		Washer   (Replaces: 8211254)				$ 9.30
21	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
2A	8211250		Caster, Rigid 5" With Brake (right Hand)				$ 40.15
7A	8211271		Door (includes Handle) (silver Tread Plate, Right Hand)		Appelez-nous	-
7B	W10757769		Door (includes Handle) (red Tread Plate, Left Hand)		Appelez-nous	-
7C	W10757768		Door (includes Handle) (red Tread Plate, Right Hand)		Appelez-nous	-
