SELECT A DIAGRAM

01 - Cover Sheet

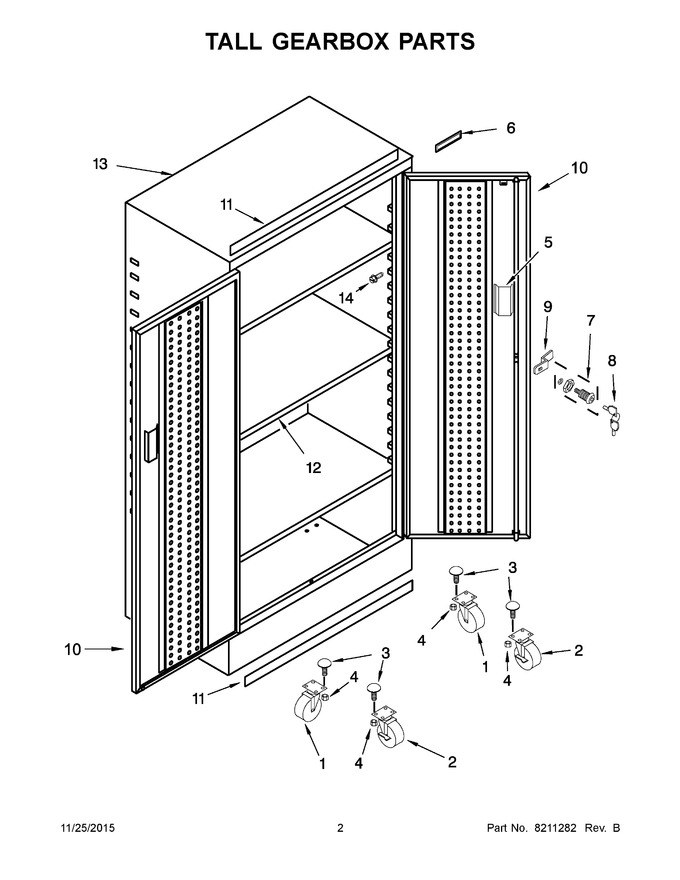

02 - Tall Gearbox Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 76.42
2	8211250		Caster, Rigid 5" With Brake (right Hand)				$ 40.15
3	WP8204609		Bolt   (Replaces: 8204609)				$ 69.70
4	WP8204610		Nut, Nylon   (Replaces: 8204610)				$ 12.39
5	W10914558		Handle, Plastic   (Replaces: 8204603)				$ 7.59
6	8204633		Nameplate, Gladiator		Appelez-nous	-
7	W11557659		Lock Assembly   (Replaces: 8204607)				$ 63.98
8	W11383363		Keys   (Replaces: 8204608)				$ 7.31
9	W11538391		Cam   (Replaces: 8211273)				$ 59.92
10	8211274		Door (includes Handle) (silver Treadplate, Right Hand)		Appelez-nous	-
11	W11241073		Magnet   (Replaces: 8211281)		Appelez-nous	-
12	WP8211264		Shelf, Full 18   (Replaces: 8211264)				$ 75.36
13	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	WPW10001180		Screw   (Replaces: 8204616)				$ 8.05
10A	WP8211275		Door (includes Handle) (silver Treadplate, Left Hand)   (Replaces: 8211275)				$ 335.78
10B	W10757761		Door (includes Handle) (red Treadplate, Right Hand)		Appelez-nous	-
10C	W10757763		Door (includes Handle) (red Treadplate, Left Hand)		Appelez-nous	-
2A	W10741533		Caster, Rigid 5" With Brake (left Hand)   (Replaces: 8211251)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
