SELECT A DIAGRAM
New Model Search:

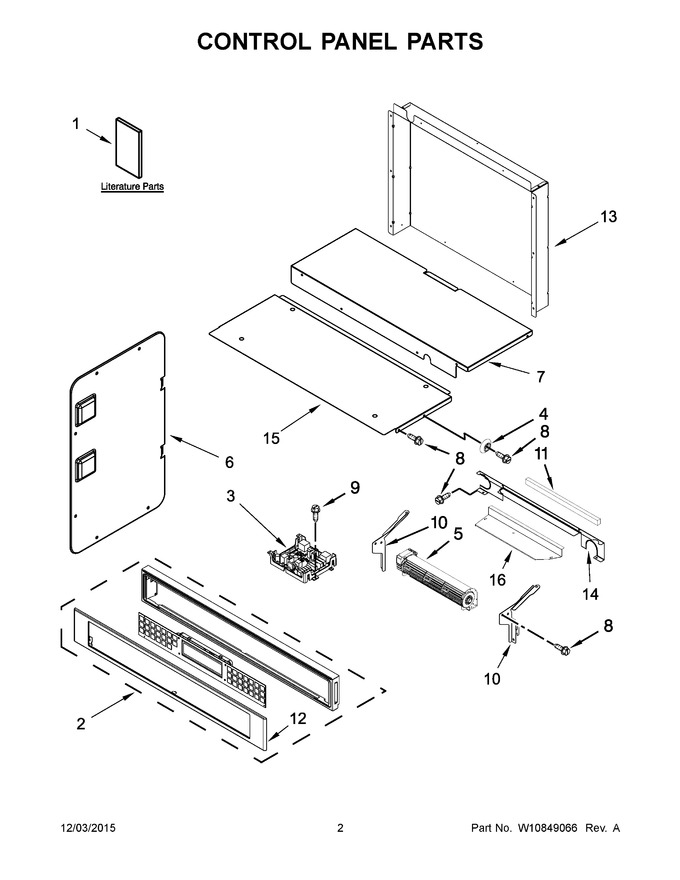

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725683 | Instructions, Installation |
|
- | |||||
| 2 | W10588754 | Assembly, Control Panel (includes Overlay) (black) |
|
$ 746.34 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 456.49 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 348.59 | ||||
| 6 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 7 | W10283031 | Chassis, Cover Top Back 30 |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588744 | Skin, Control Panel (black) |
|
$ 258.96 | |||||
| 13 | W10519703 | Cover, Back Duct |
|
- | |||||
| 14 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318158 | Chassis, Cover Top Front 30 |
|
- | |||||
| 16 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588746 | Skin, Control Panel (white) |
|
- | |||||
| 12B | W10588740 | Skin, Control Panel (stainless) |
|
$ 214.05 | |||||
| 12C | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 285.61 | |||||
| 1A | W10643472 | Guide, Use & Care (oven) |
|
- | |||||
| 1B | W10643473 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W10756611 | Tech Sheet (english) |
|
- | |||||
| 1D | W10756612 | Tech Sheet (french) |
|
- | |||||
| 2A | W10588757 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 2B | W11093254 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10588755) |
|
Immediately | $ 1,011.43 | ||||
| 2C | W10916778 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10697968) |
|
$ 598.91 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | WPW10017410 | Fuse, Time Delay (Replaces: W10017410) |
|
Immediately | $ 22.23 | ||||
| NI | 4454949 | Holder, Fuse |
|
$ 95.24 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11157180 | Harness, Main (Replaces: W10789996) |
|
$ 256.01 | |||||
| NI | W10789995 | Harness, Signal |
|
$ 86.96 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 118.98 | |||||
| NI | W10603949 | Harness, Communication |
|
$ 158.07 | |||||
| NI | W10874060 | Harness, Inverter (Replaces: W10406103) |
|
$ 148.71 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- |
