01 - Cover Sheet

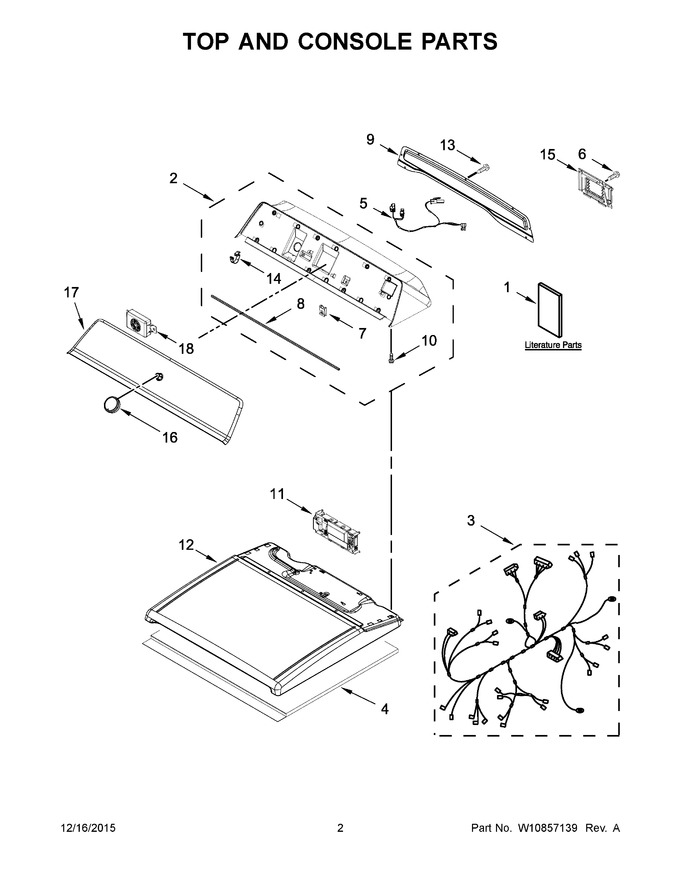

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10807523 | Installation Instructions |
|
- | |||||
| 2 | W10682013 | Assembly, Fascia (chrome Shadow) |
|
$ 381.03 | |||||
| 3 | W10706041 | Wiring Harness |
|
$ 303.85 | |||||
| 4 | W10123956 | Panel, Dampening |
|
- | |||||
| 5 | W10849059 | Harness, User Interface (Replaces: W10788429) |
|
$ 184.59 | |||||
| 6 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 7 | 98009179 | Nut, "u (Replaces: W10787282) |
|
$ 14.03 | |||||
| 8 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 9 | W10622402 | Panel, Rear Console |
|
- | |||||
| 10 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 11 | W11027185 | Control, Electronic (Replaces: W10793300) |
|
$ 534.01 | |||||
| 12 | W11051477 | Top (chrome Shadow) (Replaces: W10681117) |
|
$ 358.85 | |||||
| 13 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 7.30 | |||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | WPW10316167 | Cover, Terminal Block (Replaces: W10316167) |
|
$ 104.04 | |||||
| 16 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 17 | W10849061 | Fascia (Replaces: W10740703) |
|
$ 813.41 | |||||
| 18 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 1A | W10807511 | Use And Care Guide |
|
- | |||||
| 1B | W10680150 | Tech Sheet |
|
- | |||||
| 1C | W10809789 | Quickstart Guide |
|
- |
