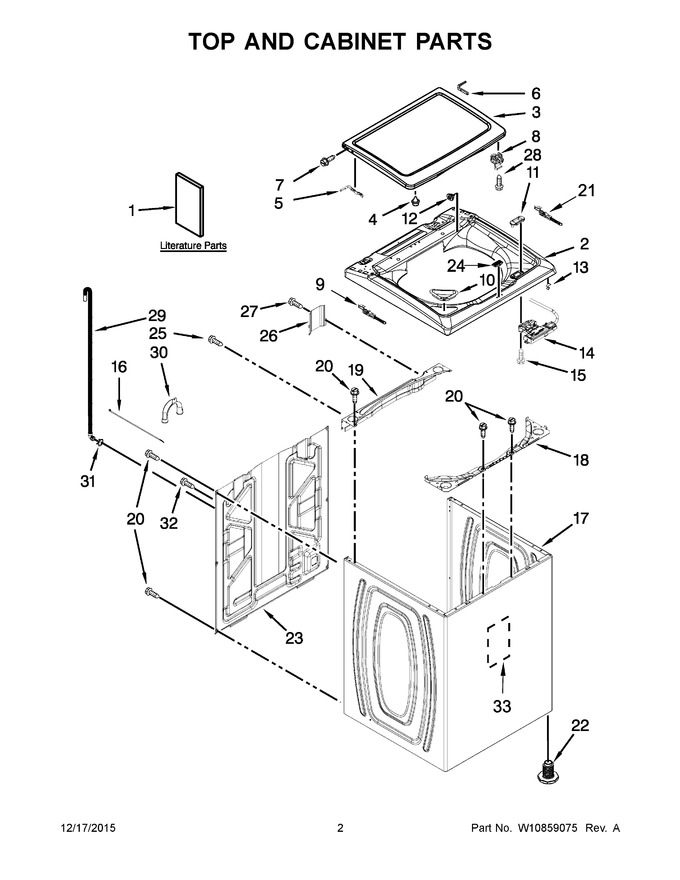

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10478095		Installation Instructions		Appelez-nous	-
2	W10420444		Top (granite)				$ 296.17
3	W11431854		Assembly, Lid And Bumper (granite)   (Replaces: W10591223)		Appelez-nous	-
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.50
5	WP8563965		Hinge, Wire (left)   (Replaces: 8563965)			Immediately	$ 27.82
6	WP8572974		Hinge, Wire (right)   (Replaces: 8572974)			Immediately	$ 27.45
7	W11404293		Screw   (Replaces: W10339706)			Immediately	$ 13.27
8	WPW10239968		Strike, Lid Lock (gray)   (Replaces: W10420456)				$ 73.41
9	W10270398		Hinge, Lid (left)				$ 122.27
10	W10468332		Dispenser, Bleach (gray)		Appelez-nous	-
11	W10420458		Bezel, Lid Lock (gray)				$ 18.59
12	W10293653		Hinge, Glass Lid (left Hand)				$ 15.72
13	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.70
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10744659)			Immediately	$ 73.69
15	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10596398		Cabinet (granite)   (Replaces: W10503843)				$ 343.31
18	W11695476		Brace, Cabinet Top - Front   (Replaces: W10215098)				$ 71.81
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W10512626)				$ 93.49
20	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
21	W10270399		Hinge, Lid (right)				$ 118.72
22	WPW10687506		Foot, Leveling   (Replaces: W10397994)			Immediately	$ 23.46
23	W11486091		Panel, Rear   (Replaces: W10250884)			Immediately	$ 294.95
24	W10492808		Badge				$ 53.84
25	WP489128		Screw   (Replaces: W10142728)				$ 10.26
26	W10676061		Cover, Harness				$ 33.09
27	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
28	WP313808		Screw   (Replaces: 311932)				$ 7.47
29	W11244231		Hose, Outer Drain Assembly   (Replaces: W10221546)			Immediately	$ 28.86
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 75.16
31	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
32	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
33	W11096159		Damper, Sound   (Replaces: W10414221)				$ 25.86
12A	W10293293		Hinge, Glass Lid (right Hand)				$ 15.72
1A	W10566773		Use & Care Guide		Appelez-nous	-
1B	W10468342		Tech Sheet		Appelez-nous	-
1C	W10331110		Quick Start Guide		Appelez-nous	-
1D	W10648285		Energy Guide		Appelez-nous	-
