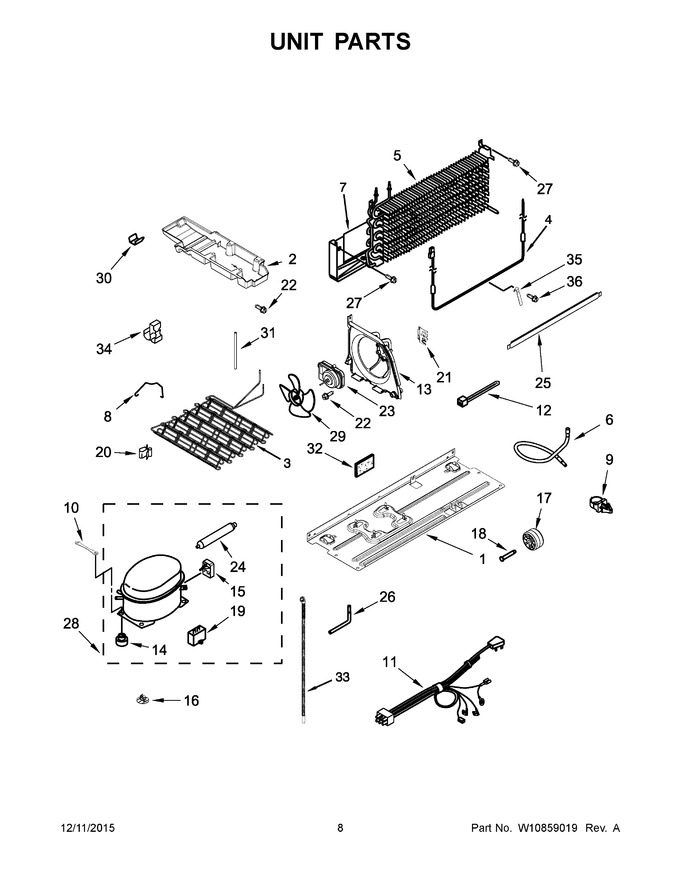

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11396825		Baseplate   (Replaces: W10300118)				$ 140.15
2	W10890667		Tray, Drain   (Replaces: W10466213)				$ 151.95
3	W10609393		Condenser				$ 218.10
4	W10405108		Heater, Defrost		Appelez-nous	-
5	W10836706		Assembly, Evaporator   (Replaces: W10570565)			Immediately	$ 431.27
6	W10466682		Tube, Suction				$ 44.33
7	WPW10314195		Shield, Heat   (Replaces: W10314195)				$ 101.34
8	W10801781		Strap, Bale		Appelez-nous	-
9	2219077		Clip, Harness				$ 64.24
10	W10236396		Strap, Compressor			Immediately	$ 20.81
11	W10797923		Harness, Unit		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
13	W11500918		Baffle, Air   (Replaces: W10609392)		Appelez-nous	-
14	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)				$ 7.55
15	WP2312007		Start Device   (Replaces: 2312007)				$ 189.69
16	W10296661		Clip, Bottom Cover				$ 17.78
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	W10801770		Capacitor		Appelez-nous	-
20	W10812038		Clip, Wire (compressor)   (Replaces: 939054)		Appelez-nous	-
21	W10314197		Bracket, Evaporator				$ 23.44
22	W10829281		Screw   (Replaces: W10622701)				$ 13.28
23	W10527160		Motor, Condenser Fan		Appelez-nous	-
24	W10843121		Drier   (Replaces: W10669573)			Immediately	$ 57.13
25	W10300902		Cover, Heater				$ 29.57
26	W11676464		Tube, Process   (Replaces: VS20001)				$ 108.61
27	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
28	W10183407		Compressor   (Replaces: W10120455)				$ 435.61
29	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
31	W11190084		Valve, Drain   (Replaces: W10519112)			Immediately	$ 65.56
32	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
33	W10475011		Tube, Drain				$ 31.78
34	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
35	W11807361		Heat Probe   (Replaces: 2258429)				$ 20.12
36	WP489478		Screw   (Replaces: 489478)				$ 8.18
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
