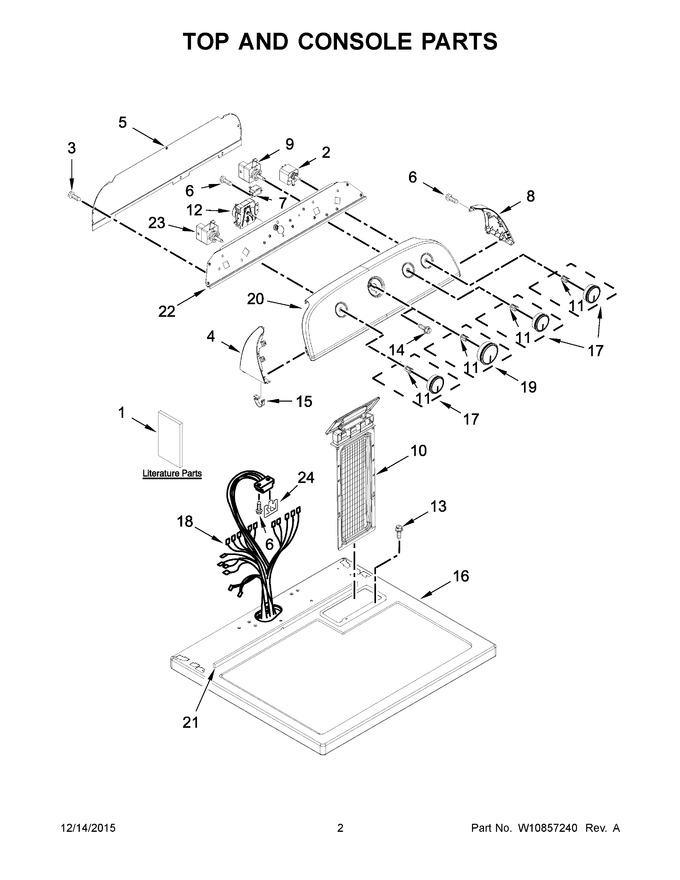

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10829621		Installation Instructions		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 64.69
5	W10556829		Panel, Rear (console)				$ 285.82
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
9	WP8578352		Switch, Rotary (5 Pos)   (Replaces: 8578352)				$ 237.85
10	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 250.69
17	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
18	W10804461		Harness, Wiring		Appelez-nous	-
19	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10576634)				$ 45.78
20	W10775962		Console (white)		Appelez-nous	-
21	W10316616		Seal, Foam				$ 27.79
22	W10556828		Bracket, Control		Appelez-nous	-
23	WP3405156		Switch, Roatary (2 Pos)   (Replaces: 3405156)				$ 152.79
24	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
1A	W10829619		Use And Care Guide		Appelez-nous	-
1B	W10663990		Diagram, Wiring		Appelez-nous	-
