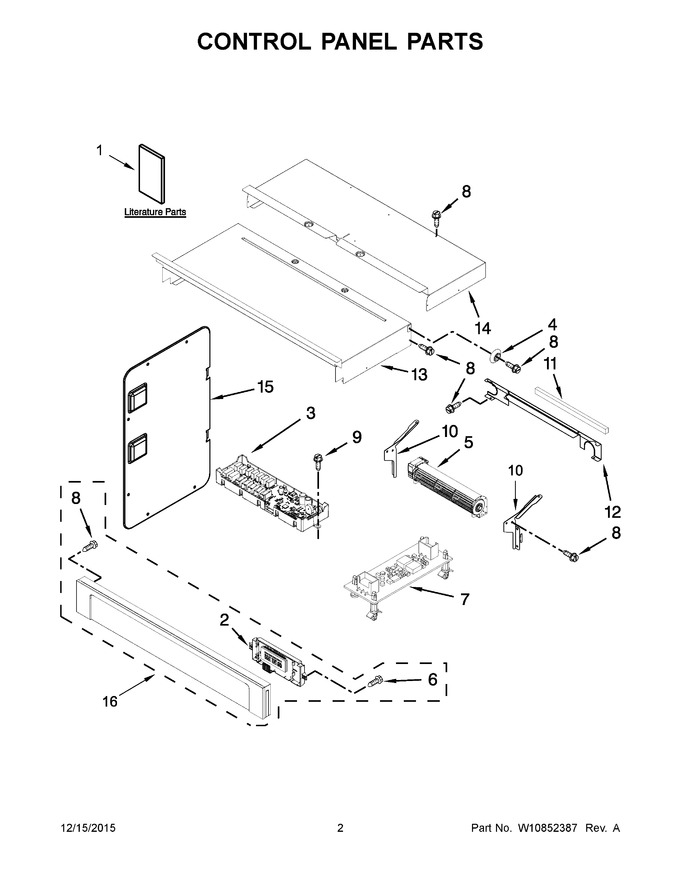

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10796009 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | WPW10752316 | Board, Display Mrc2 (Replaces: W10752316) |
|
Immediately | $ 423.85 | ||||
| 3 | W10854236 | Board, Mrc2 Main (Replaces: W10759192) |
|
$ 455.74 | |||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10661038 | Blower (Replaces: W10661038) |
|
$ 259.23 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10412514 | Board, Wide Interface (Replaces: W10412514) |
|
$ 318.64 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 13 | W10318158 | Chassis, Cover Top Front 30 |
|
- | |||||
| 14 | W10283031 | Chassis, Cover Top Back 30 |
|
- | |||||
| 15 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 16 | W10864174 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10812350) |
|
$ 883.31 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 16A | W10864176 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10812352) |
|
$ 970.50 | |||||
| 16B | W10812353 | Assembly, Control Panel (includes Overlay) (white Ice) |
|
- | |||||
| 1A | W10798191 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1B | W10696163 | Instructions, Installation |
|
- | |||||
| 1C | W10796080 | Sheet, Tech |
|
- | |||||
| NI | W11356970 | Harness, Interlock (Replaces: W10371814) |
|
$ 165.38 | |||||
| NI | W11157222 | Harness, Communication (Replaces: W10778562) |
|
- | |||||
| NI | W10573327 | Harness, Door Latch |
|
$ 67.67 | |||||
| NI | W11226264 | Strap, Ground (Replaces: W10392129) |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W10190263 | Clip, Harness |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10778561 | Harness, Main |
|
- | |||||
| NI | W11356954 | Harness, Fan & Turntable (Replaces: W10389372) |
|
$ 148.75 | |||||
| NI | W10874060 | Harness, Inverter (Replaces: W10406103) |
|
$ 148.71 |
