SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Door, Front, Access And Top Panels


04 - Front Bulkhead, Air Duct & Drum


05 - Motor & Fan Assembly

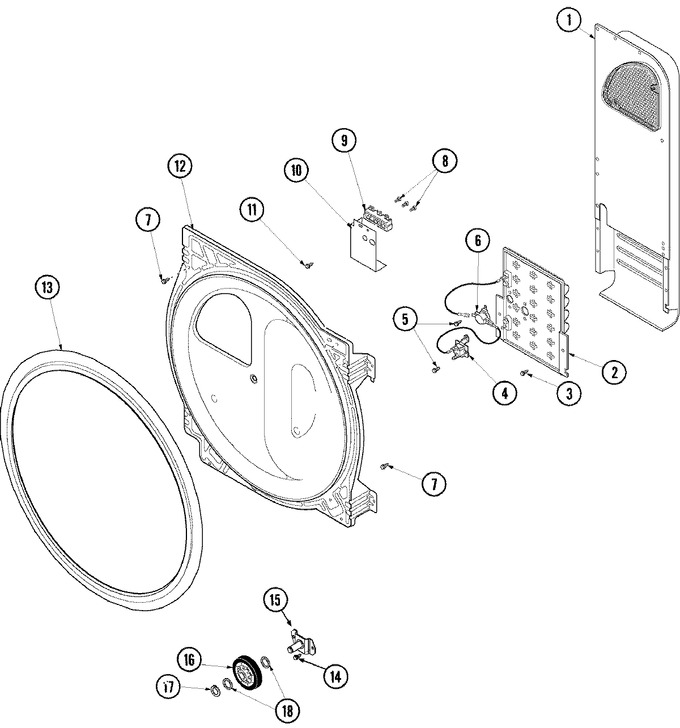

06 - Rear Bulkhead, Rollers & Heater


07 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	503605		Assembly, Heater Duct	10	Appelez-nous	-
2	WPY503978		Heater Element   (Replaces: Y503978)	10		Immediately	$ 64.07
3	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 7.72
4	WP40113801		Fuse, Thermal   (Replaces: 40113801)	10		Immediately	$ 11.52
5	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)	10		Immediately	$ 7.55
6	WPW10116735		Thermostat, Limit   (Replaces: Y62641)	10			$ 98.25
7	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)	10		Immediately	$ 7.30
8	WP3400094		Screw, No.10-32 X 3/8   (Replaces: Y61199)	10			$ 9.26
9	61923		Block, Terminal	10			$ 5.65
10	40111601		Shield, Terminal	10	Appelez-nous	-
11	D501285		Screw, No.12 X 9/16   (Replaces: 501285)	10			$ 3.07
12	504801W		Bulkhead, Rear (wht)	10	Appelez-nous	-
13	WP37001132		Seal, Cylinder   (Replaces: 501801)	10		Immediately	$ 63.36
14	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 7.72
15	WP40113601		Assy, Roller Brkt   (Replaces: 40113601)	10			$ 101.00
16	WP37001042		Assembly, Cylinder Roller   (Replaces: 500214)	10		Immediately	$ 16.96
17	WP23748		Ring, Retaining   (Replaces: 23748)	10		Immediately	$ 12.54
18	Y504082		Washer, Wave	10			$ 5.83

    View Diagram in Separate Window       Print Part List
