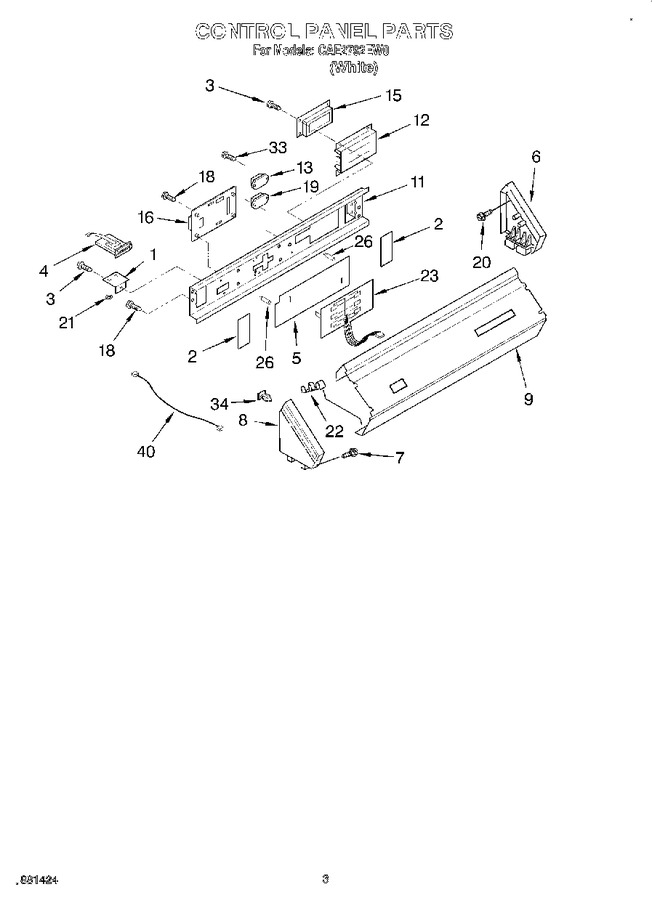

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3949607		Bracket, Card Reader		Appelez-nous	-
2	3950775		Backer Plate (side)		Appelez-nous	-
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
4	3949598		Card Reader		Appelez-nous	-
5	3950773		Backer Plate		Appelez-nous	-
6	3949737		Cap, End (r.h.)				$ 49.53
7	WP388326		Screw (2)   (Replaces: 388326)				$ 9.29
8	3949734		Cap, End (l.h.)		Appelez-nous	-
9	3949729		Panel, Control		Appelez-nous	-
11	3949731		Bracket, Control		Appelez-nous	-
12	3950779		Bezel, Display		Appelez-nous	-
13	697811		Relay, Cancel		Appelez-nous	-
15	3950778		Display, Electronic		Appelez-nous	-
16	3950777		Board, Control		Appelez-nous	-
18	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.88
19	384674		Relay, Power (2)		Appelez-nous	-
20	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
21	3406192		Nut, Push-in		Appelez-nous	-
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
23	3950772		Switch, Membrane				$ 115.59
26	3950774		Mounting Stud		Appelez-nous	-
33	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
34	689559		Nut, Push-in (2)		Appelez-nous	-
40	3406407		Vfd Cable		Appelez-nous	-
