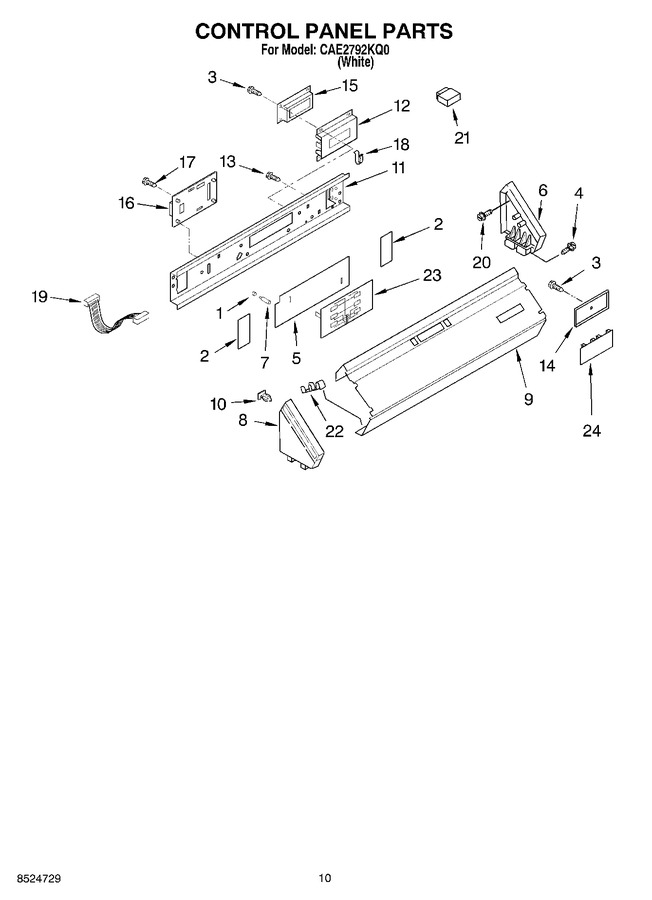

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3951768		Cap, Mounting Stud		Appelez-nous	-
2	3950775		Backer Plate (side)		Appelez-nous	-
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
4	8281182		Screw, 8-18 X 1.25				$ 5.33
5	3950773		Backer Plate		Appelez-nous	-
6	3949737		End Cap (r.h.)				$ 49.53
7	3950774		Mounting Stud		Appelez-nous	-
8	3949734		End Cap (l.h.)		Appelez-nous	-
9	8318582		Panel, Control		Appelez-nous	-
10	689559		Nut, Push-in (2)		Appelez-nous	-
11	3978881		Bracket, Control		Appelez-nous	-
12	3406980		Bezel, Display		Appelez-nous	-
13	WP3351614		Screw, 10-24 X 1/2   (Replaces: 90864)			Immediately	$ 7.30
14	3955406		Retainer, Plug		Appelez-nous	-
15	3407166		Display, Electronic		Appelez-nous	-
16	3407164		Board, Control				$ 368.87
17	WPW10366705		Screw (4)   (Replaces: 3393909)				$ 7.88
18	3363338		Clip (2)		Appelez-nous	-
19	3955147		Harness, Control To Display		Appelez-nous	-
20	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
21	3955146		Harness, Jumper		Appelez-nous	-
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
23	3407168		Switch, Membrane		Appelez-nous	-
24	800-221-098		@ Sales Greenwaldindustries.com		Appelez-nous	-
24	3955405		Plug, Panel		Appelez-nous	-
