SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Door And Front, Access, And Top Panels


04 - Front Bulkhead, Air Duct & Drum


05 - Gas Valve, Igniter & Gas Conversion Kit


06 - Motor And Fan Assemblies


07 - Rear Bulkhead, Rollers & Air Duct Assy

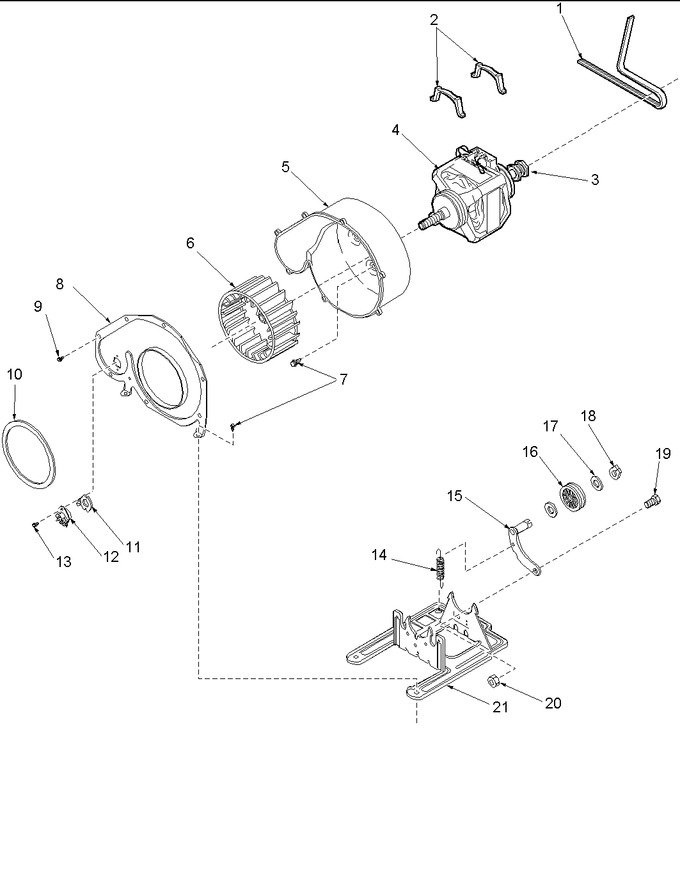

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP40111201		Belt, Cylinder   (Replaces: 40111201)			Immediately	$ 18.68
2	WP660658		Clamp, Motor Mount   (Replaces: Y58047)				$ 7.83
3	WP2200376		Motor, Pully   (Replaces: 40048501)			Immediately	$ 163.14
4	D511574P		Assembly, Motor & Pulley   (Replaces: 40099801)			Immediately	$ 313.00
5	D511969WP		Housing, Blower   (Replaces: 56020)				$ 68.34
6	D510139P		Assembly, Blower Fan   (Replaces: 56000)			Immediately	$ 81.54
7	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
8	500078		Cover, Blower Housing		Appelez-nous	-
9	31260		Screw, No.8 X 3/8 Ind H				$ 2.98
10	40090001		Seal, Blower Housing		Appelez-nous	-
11	61623		Heater, Thermostat				$ 29.53
12	WP503979		Thermostat (cycling Pk/wht)   (Replaces: 503979)				$ 108.14
13	31260		Screw, No.8 X 3/8 Ind H				$ 2.98
14	WP56076		Spring, Idler   (Replaces: 56076)				$ 73.00
15	WP37001144		Assy, Idler Lever   (Replaces: 40113501)				$ 55.44
16	WPY54414		Assembly, Wheel & Bearing   (Replaces: Y54414)			Immediately	$ 21.23
17	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.96
18	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 11.94
19	D500824		Screw, 1/4-20 Unc Hex   (Replaces: 500824)				$ 7.72
20	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.96
21	D518517		Mount, Motor   (Replaces: 503613)				$ 34.05

    View Diagram in Separate Window       Print Part List
