Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10114745 Repair Parts List Appelez-nous -
1 W10135801 Wiring Diagram Appelez-nous -
1 8524739 Installation Instructions Appelez-nous -
1 W10172196 Energy Guide Appelez-nous -
2 8524688 Top Special Order $ 133.25

3 3353950 Spacer, Cabinet To Top (4) Special Order $ 6.74

4 WP3351614 Screw, Ground   (Replaces: 3351614) In-Stock Immediately $ 7.30

5 WP3358500 Panel, Front   (Replaces: 3358500) Special Order $ 348.54

6 WP62780 Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780) In-Stock Immediately $ 8.19

7 358473 Nut, Push-in (2) Special Order $ 5.84

8 3400611 Screw, Lid Switch Appelez-nous -
9 WP90406 Nut, Cage   (Replaces: 90406) Special Order $ 9.09

10 3353948 Bracket, Lock Special Order $ 12.34

11 WP8054980 Switch, Lid   (Replaces: 8054980) In-Stock Immediately $ 154.77

12 63554 Rivet (2) Appelez-nous -
13 WPW10119828 Screw, Lid Hinge Mounting (4)   (Replaces: W10119828) In-Stock Immediately $ 7.55

14 WP21097 Pad, Lid Hinge (2)   (Replaces: 21097) Special Order $ 8.19

15 WP8524784 Hinge, Lid (l.h.)   (Replaces: 8524784) Special Order $ 35.64

16 WP54583 Hinge, Lid (r.h.)   (Replaces: 54583) Special Order $ 31.04

17 19119 Bumper, Lid Hinge Special Order $ 5.75

18 WP21258 Bearing, Lid Hinge (2)   (Replaces: 21258) In-Stock Immediately $ 8.01

19 W10171146 Lid Appelez-nous -
20 387371 Plug, Lock Special Order $ 11.36

21 3353812 Locator (4) Special Order $ 5.51

22 356908 Bumper, Lid Special Order $ 8.35

23 WP9741232 Screw (4)   (Replaces: 718258) In-Stock Immediately $ 5.07

24 WP98234 Clip, U-bend (2)   (Replaces: 98234) In-Stock Immediately $ 11.96

25 3353993 Screw (2) Special Order $ 5.86

26 WP356907 Rivet, Plastic   (Replaces: 356907) Special Order $ 7.77

27 WP3373329 Screw, Panel Mtg. (2)   (Replaces: 3393258) Special Order $ 8.52

28 3976380 Side Panel (rh) Special Order $ 197.22

29 3976382 Side Panel (lh) Special Order $ 298.26

30 3353949 Pin, Locator (2) Special Order $ 6.23

31 WP18776 Lock (2)   (Replaces: 18776) In-Stock Immediately $ 13.31


    View Diagram in Separate Window     Print Icon   Print Part List

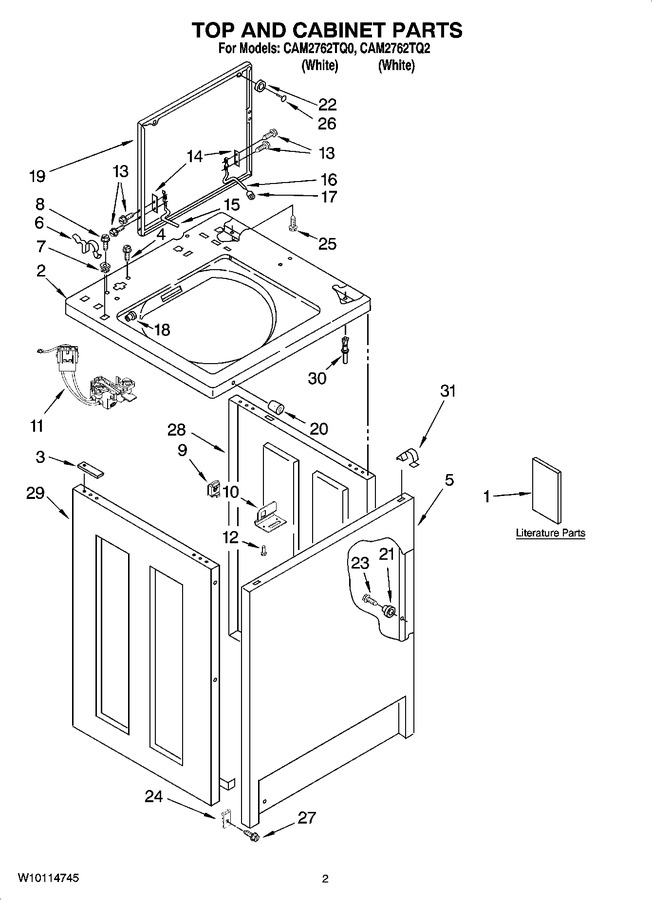

Diagram for CAM2762TQ0
