01 - Cover Sheet

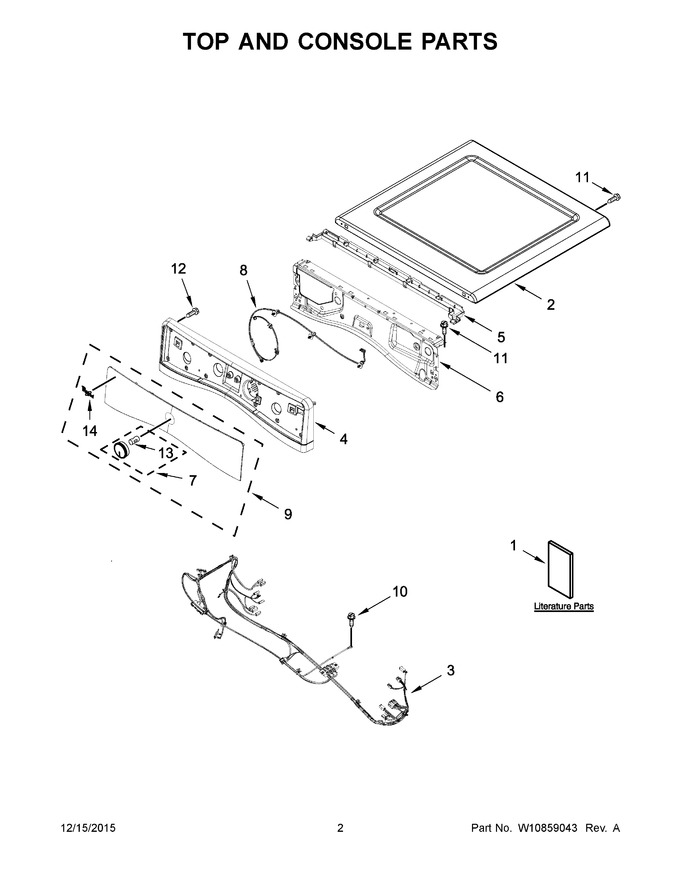

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10676163 | Installation Instructions |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | W10801123 | Harness, Main Wiring |
|
$ 104.68 | |||||
| 4 | WPW10446407 | Panel, Console (white) (Replaces: W10446407) |
|
$ 187.68 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10631126) |
|
Immediately | $ 52.99 | ||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 9 | W10800231 | Iml Assembly (white) |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10489172 | Screw |
|
$ 11.98 | |||||
| 13 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 14 | W10510981 | Badge (white) |
|
- | |||||
| 14A | W10510982 | Badge (grey) |
|
$ 83.69 | |||||
| 1A | W10804688 | Use And Care Guide |
|
- | |||||
| 1B | W10804378 | Wiring Diagram |
|
- | |||||
| 1C | W10806847 | Tech Sheet |
|
- | |||||
| 1D | W10804668 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 2B | WPW10316282 | Top (silver) (Replaces: W10316282) |
|
$ 346.19 | |||||
| 2C | W10628221 | Top (black) |
|
$ 270.03 | |||||
| 4A | WPW10463687 | Panel, Console (chrome Shadow) (Replaces: W10463687) |
|
$ 294.06 | |||||
| 4B | W10504272 | Panel, Console (silver) |
|
$ 316.67 | |||||
| 4C | W10433196 | Panel, Console (black) |
|
$ 361.22 | |||||
| 7A | WPW10631127 | Assembly, Timer Knob (grey) (Replaces: W10631127) |
|
$ 41.95 | |||||
| 7B | W10631128 | Assembly, Timer Knob (silver) |
|
$ 43.42 | |||||
| 9A | W10800232 | Iml Assembly (chrome Shadow) |
|
- | |||||
| 9B | W10800233 | Iml Assembly (stainless) |
|
$ 939.70 | |||||
| 9C | W10800234 | Iml Assembly (black) |
|
- |
