01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console And Dispenser Parts

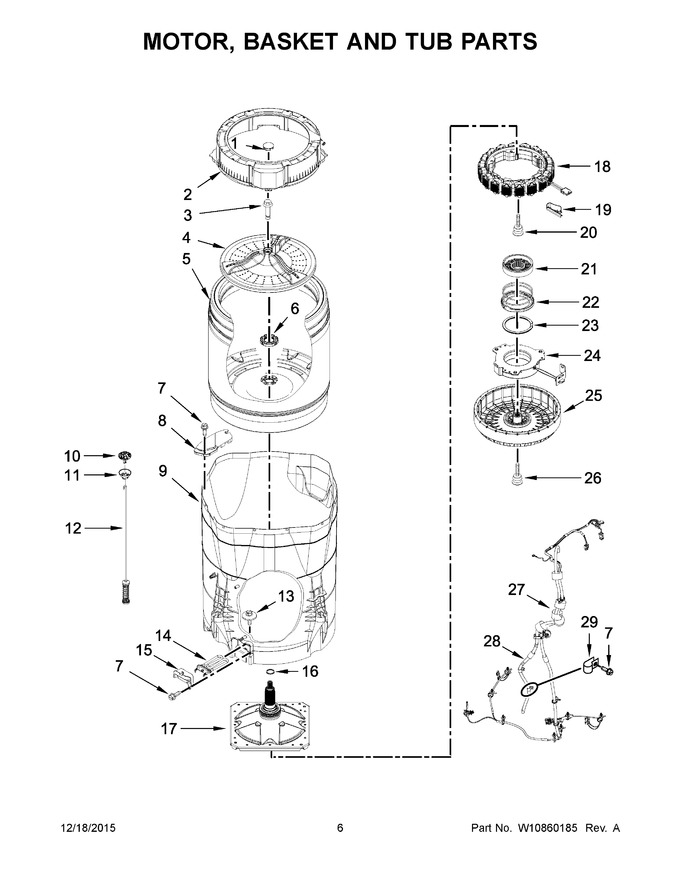

04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11050804 | Cap, Impeller (Replaces: W10609549) |
|
Immediately | $ 8.18 | ||||
| 2 | W11161993 | Tub Ring (Replaces: W10578863) |
|
Immediately | $ 198.45 | ||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W10902814 | Impeller (washplate) (Replaces: W10609480) |
|
Immediately | $ 136.03 | ||||
| 5 | W10811960 | Basket Assembly (Replaces: W10586079) |
|
Immediately | $ 515.17 | ||||
| 6 | W10909670 | Nut, Spin Tube (Replaces: W10564013) |
|
Immediately | $ 32.34 | ||||
| 7 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 8 | W10597575 | Filter, Dual Pump Hood |
|
$ 35.14 | |||||
| 9 | W10512164 | Tub |
|
$ 429.21 | |||||
| 10 | W10583768 | Ball, Suspension (set Of 4 - Includes Suspension Bushings) |
|
- | |||||
| 11 | W10256551 | Bushing - Upper Suspension (set Of - Includes Suspension Balls) |
|
- | |||||
| 12 | W11130356 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10594084) |
|
Immediately | $ 223.72 | ||||
| 13 | W10743982 | Screw |
|
$ 26.54 | |||||
| 14 | W11041462 | Heater, Tub (Replaces: W10325894) |
|
$ 84.89 | |||||
| 15 | WPW10297450 | Cover, Tub Heater (Replaces: W10297450) |
|
$ 37.26 | |||||
| 16 | W11032711 | Washer, Thrust (Replaces: W10665342) |
|
Immediately | $ 10.35 | ||||
| 17 | W11393685 | Assembly, Drive (Replaces: W10447976) |
|
Immediately | $ 352.24 | ||||
| 18 | W10754158 | Stator, Motor (Replaces: W10579778) |
|
Immediately | $ 288.46 | ||||
| 19 | W10673062 | Harness Shield - Motor |
|
$ 77.71 | |||||
| 20 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 8.12 | ||||
| 21 | W10734521 | Slider (Replaces: W10447975) |
|
Immediately | $ 47.46 | ||||
| 22 | W10734521 | Assembly, Spring (Replaces: W10006494) |
|
Immediately | $ 47.46 | ||||
| 23 | W10734521 | Ring, Snap (Replaces: W10275082) |
|
Immediately | $ 47.46 | ||||
| 24 | W10754448 | Assembly, Clutch (Replaces: W10447973) |
|
Immediately | $ 168.82 | ||||
| 25 | W10754161 | Rotor, Motor (Replaces: W10447979) |
|
Immediately | $ 232.99 | ||||
| 26 | W10752189 | Screw (Replaces: W10636382) |
|
Immediately | $ 8.86 | ||||
| 27 | W10780062 | Harness, Lower |
|
Immediately | $ 242.33 | ||||
| 28 | WP353244 | Hose Pressure Switch (Replaces: W10748451) |
|
Immediately | $ 86.67 | ||||
| 29 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 |
