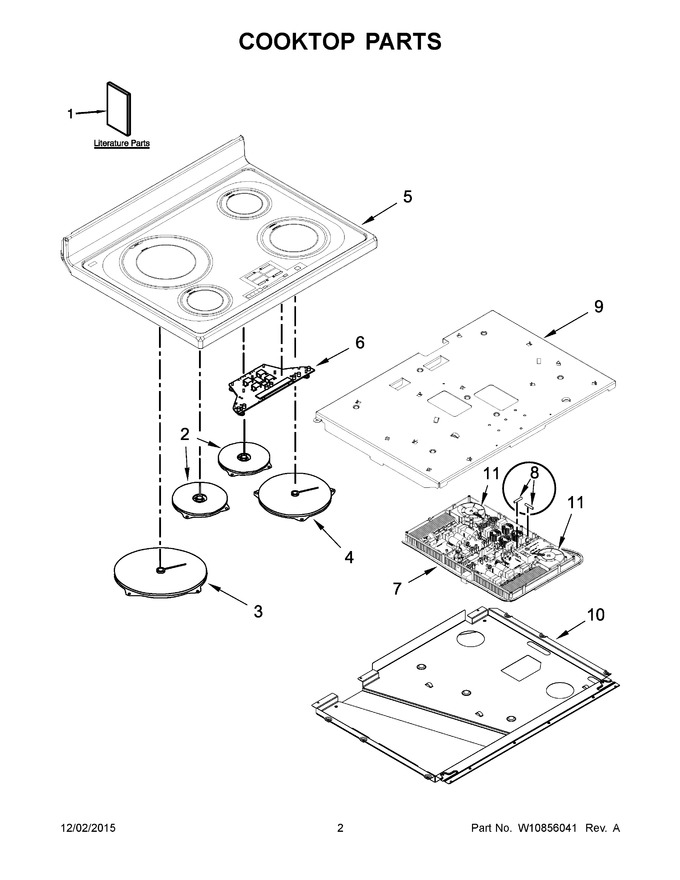

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694057		Guide, Use & Care		Appelez-nous	-
2	WPW10410580		Hotplate (left Front & Right Rear)   (Replaces: W10410580)				$ 230.27
3	WPW10460400		Hotplate (left Rear)   (Replaces: W10460400)				$ 272.31
4	WPW10536262		Hotplate (right Front)   (Replaces: W10536262)				$ 227.82
5	W10777613		Cooktop (stainless)   (Replaces: W10687992)				$ 643.90
6	W10818273		Control, Ui   (Replaces: W10808236)			Immediately	$ 603.35
7	W10794056		Assembly, Induction Module				$ 599.76
8	WPW10328492		Fuse   (Replaces: W10328492)			Immediately	$ 109.29
9	W10454938		Plate, Induction				$ 311.53
10	W10564364		Assembly, Induction Pan				$ 311.71
11	W10328381		Fan, Cooling (left)			Immediately	$ 324.00
11A	W10328378		Fan, Cooling (right)				$ 325.92
1A	W10694066		Instructions, Installation		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11171882		Harness, Main   (Replaces: W10745678)		Appelez-nous	-
NI	W11172529		Harness, Signal   (Replaces: W10580292)			Immediately	$ 110.81
NI	W11172531		Harness, Sensor & Locks   (Replaces: W10745683)			Immediately	$ 107.28
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 4.56
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 7.98
NI	8019P013-60		Clip, Wire Lock				$ 14.13
