01 - Cover Sheet

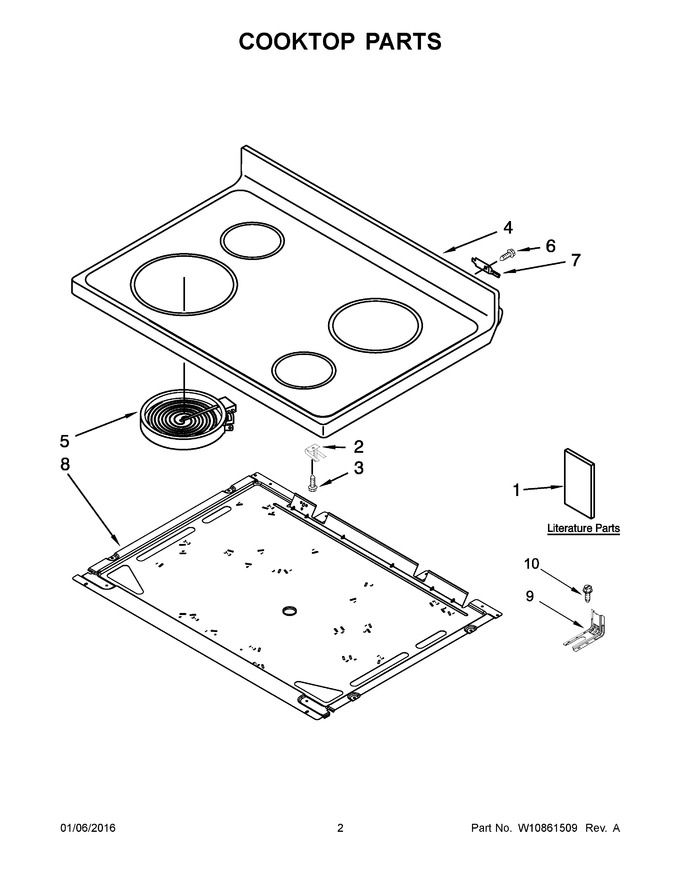

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10720131 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W10248202 | Cooktop (white) (Replaces: W10202165) |
|
$ 603.76 | |||||
| 5 | WPW10242957 | Element (2000w) (Replaces: 8523695) |
|
$ 360.66 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10545225 | Use And Care Guide |
|
- | |||||
| 1B | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1C | W10384462 | Tech Sheet (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 5A | W10823699 | Element (1500w) (Replaces: 8523697) |
|
Immediately | $ 169.95 | ||||
| NI | W10273585 | Miscellaneous Parts, Harness, Wire (cooktop Left) |
|
- | |||||
| NI | W10273584 | Miscellaneous Parts, Harness, Wire (cooktop Right) |
|
$ 134.76 | |||||
| NI | W10306365 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W11172424 | Miscellaneous Parts, Harness, Sensor (Replaces: W10083650) |
|
$ 113.78 | |||||
| NI | W11226497 | Miscellaneous Parts, Cord, Power (Replaces: W10624591) |
|
Immediately | $ 110.55 | ||||
| NI | 3184020 | Miscellaneous Parts, Wire, Ground (Replaces: 8523279) |
|
$ 86.92 | |||||
| NI | 313660 | Miscellaneous Parts, Clip, Ground Wire |
|
- | |||||
| NI | WP3196154 | Miscellaneous Parts, Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| NI | WPW10144763 | Miscellaneous Parts, Tie, Cable (Replaces: W10144763) |
|
$ 7.93 | |||||
| NI | W11244557 | Miscellaneous Parts, Screw (Replaces: 3196173) |
|
$ 14.29 |
