Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-51879-2 Pm Mini Manual Appelez-nous -
1 31-49077-2 Pm Install Instructions Appelez-nous -
2 WR01X10304 Hardware Pack Appelez-nous -
31 WR17X23167 Grill Drip Dispenser Special Order $ 179.84

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X23460 Paddle Dispenser Appelez-nous -
74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

100 WR78X23232 Door Foam Asm Fz Sxs Dsp Appelez-nous -
101 WR02X24370 Custom Collar 1/4 Panel Appelez-nous -
102 WR13X10238 Top Sxs Fz Door Hinge As Appelez-nous -
103 WR38X23456 Custom Collar 3/4 Panel Appelez-nous -
104 WR02X24371 Custom Collar 1.1 Panel Appelez-nous -
106 WR01X10297 Fz Bottom Hinge Bushing Appelez-nous -
107 WR24X10203 Gasket Door Appelez-nous -
108 WR71X25604 Bin Door Asm 36/48 Appelez-nous -
110 WR17X12771 Housing Shield Disp Appelez-nous -
113 WR23X10783 Switch Appelez-nous -
114 WR02X10584 Spring Funnel Appelez-nous -
116 WR2X9561 Lamp Socket Appelez-nous -
119 WR01L01914 Door Recess Assy   (Replaces: WR17X3093) Special Order $ 65.21

122 WR38X10332 Door Trim Fz Top Appelez-nous -
123 WR38X10333 Door Trim Fz Btm Appelez-nous -
124 WR38X10270 Door Trim Fz Side Appelez-nous -
125 WR38X10271 Handle Trim Appelez-nous -
126 WR01L06145 Handle   (Replaces: WR12X10526) Special Order $ 179.10

127 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

128 WR01X21024 Screw, 1/4-20 Tt Bht .87 Appelez-nous -
133 WR55X11048 Glass Disp Panel Subasly Appelez-nous -
135 WR01X10019 Screw 6-10 Pl Flp 1/2 S Appelez-nous -
200 WR13X10657 Hinge Door Btm Appelez-nous -
854 WR23X23462 Harness Recess Dispenser Appelez-nous -
908 WR02X24343 Ps Handle Trim Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

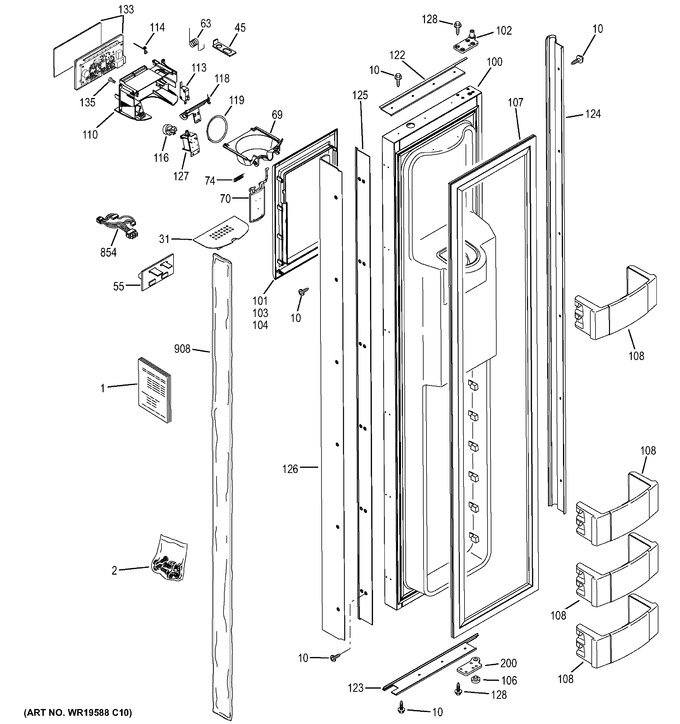

Diagram for ZISB480DHC
