Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-49077-2 Pm Install Instructions Appelez-nous -
1 31-51879-2 Pm Mini Manual Appelez-nous -
2 WR01X10304 Hardware Pack Appelez-nous -
31 WR17X23167 Grill Drip Dispenser Special Order $ 179.84

36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR17X12771 Housing Shield Disp Appelez-nous -
63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X23460 Paddle Dispenser Appelez-nous -
72 WR23X10783 Switch Appelez-nous -
74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

74 WR02X10584 Spring Funnel Appelez-nous -
93 WR55X11048 Glass Disp Panel Subasly Appelez-nous -
100 WR78X23232 Door Foam Asm Fz Sxs Dsp Appelez-nous -
102 WR13X10238 Top Sxs Fz Door Hinge As Appelez-nous -
106 WR01X10297 Fz Bottom Hinge Bushing Appelez-nous -
107 WR24X10203 Gasket Door Appelez-nous -
108 WR71X25604 Bin Door Asm 36/48 Appelez-nous -
119 WR01L01914 Door Recess Assy   (Replaces: WR17X3093) Special Order $ 65.21

120 WR78X24109 Wrap Fz Sxs Pro 48" Disp Appelez-nous -
126 WG03L01708 Handle Ss   (Replaces: WR12X10842) Special Order $ 99.55

128 WR01X21024 Screw, 1/4-20 Tt Bht .87 Appelez-nous -
134 WR01X10019 Screw 6-10 Pl Flp 1/2 S Appelez-nous -
200 WR13X10657 Hinge Door Btm Appelez-nous -
538 WR01X21110 Scr 1/4-20x.5 Hex Cap Ss Appelez-nous -
854 WR23X23462 Harness Recess Dispenser Appelez-nous -
890 WG04A01239 #10x1 Ph Sms   (Replaces: WD2X295) Special Order $ 3.97

5378 WR01A00759 Set Screw   (Replaces: WR02X11769) Special Order $ 22.23

7628 WS01L06952 Cap End   (Replaces: WR02X12344) Special Order $ 111.02


    View Diagram in Separate Window     Print Icon   Print Part List

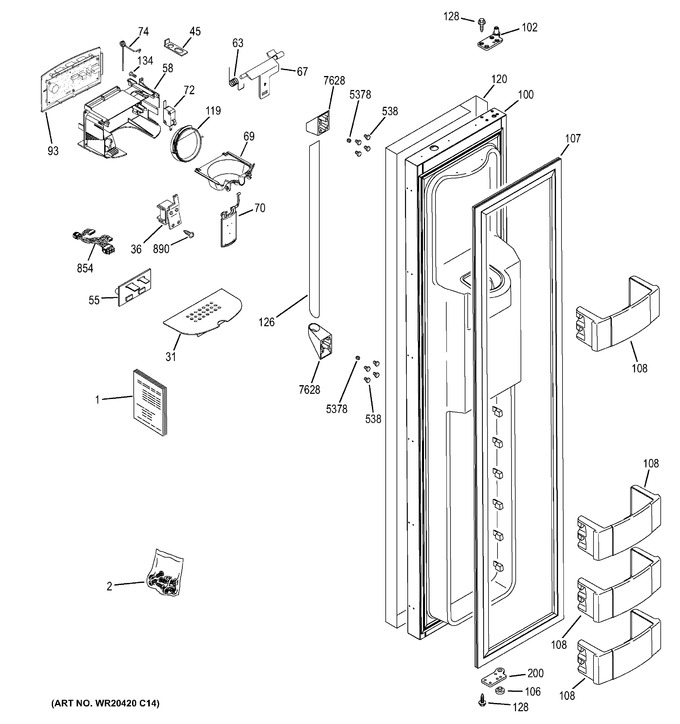

Diagram for ZISP480DHBSS
